MOD15-120 - 15" GUITAR & BASS SPEAKER
|
|
|
MOD15-120 - 15" GUITAR & BASS SPEAKER |
 |
|
|
No Longer Available |
|
SPEAKER
MODEL |
MOD15-120 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15"
/ 385mm |
|
Rated Power |
120
Watts |
| Musical Power | 240 Watts |
|
Sensitivity
(1W/1m) |
97.6dB |
|
Voice
Coil Diameter |
2"
/ 50mm |
| Magnet Assembly Weight | 28.5 oz. |
| Net Weight | 11.4 lbs. |
|
SPEAKER MATERIALS |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
MOUNTING INFORMATION |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 14.37" / 365mm |
| Overall Depth | 5.45" / 138.5mm |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | .64mH |
| Electromagnetic Q (Qes) | .8 |
| Mechanical Q (Qms) | 5.32 |
| Total Q (Qts) | .69 |
| Compliance Equivalent Vol. (Vas) | 175.6 Liters/6.2cu. ft. |
| Voice Coil Overhang (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .07547 m2 |
| Efficiency (Half Space) % | 2.42% |
| Pe Maximum (Watts) | 240 |
|
DIMENSIONAL DRAWING |
|
|
|
|

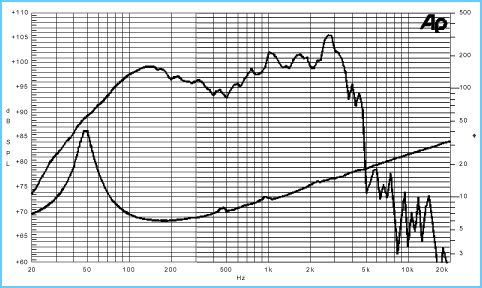

| FREQUENCY RESPONSE | |
 |
|
