• NEW RADIAN LT2.2 HIGH FREQUENCY PLANAR RIBBON DRIVER HANDLES 20 WATTS AES @ 1.2KHZ & 60 WATTS SHORT TERM POWER
• VERY WIDE FREQUENCY RANGE FROM 1.2KHZ UP TO 40KHZ FOR EXTENDED HIGHS
• FEATURES AN EXTREMELY LOW DISTORTION, COMPACT DESIGN & WIDE DISPERSION OF 120°H x 60°V
• EXCELLENT SONIC TRANSPARENCY & RESOLUTION SURPASSING CONVENTIONAL HIGH FREQUENCY DRIVERS
• FOR USE IN LINE ARRAY SPEAKER SYSTEMS, HOME HI-FI SPEAKER SYSTEMS, PA SPEAKERS, ETC.
• LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY .6 LBS.
• DESIGNED TO GIVE EXTENDED HIGHS WITH A SMOOTH SOUND

THE RADIAN LT2.2 PLANAR RIBBON DRIVER DELIVERS A WARM ACCURATE SOUND WITH EXTENDED HIGHS UP TO 25KHZ!
	RADIAN LT2.2
	Radian LT2.2 Item Price: $47.95
H.F. PLANAR RIBBON DRIVER MODEL  - LT2.2
Specifications
Impedance	5 ohms
D.C. Resistance	4.1 ohms
AES Power Rating	20 Watts above 1.2kHz
Short Term Power Rating	60 Watts above 1.2kHz
Long Term Power Rating	30 Watts above 1.2kHz
Sensitivity (1W/1m) - No Waveguide	96dB SPL
Sensitivity (1W/1m) - On Waveguide	101dB SPL
Frequency Response	1.2kHz - 40kHz
Recommended Crossover	2kHz @ 12dB or 4kHz @ 6dB
Horizontal Coverage	120°
Vertical Coverage	60°
Displacement Limit For Voice Coil	.5mm
Mounting Information
Overall Height	2.8" / 71mm
Overall Width	1.73" / 44mm
Overall Depth	.59" / 15mm
Net Weight	.6 lb. / .27 kg.
Materials
Diaphragm	Kapton
Current Carrying Conductors	Aluminum Foil
Front Plate Material	Powder Coated Steel
Magnet	Neodymium

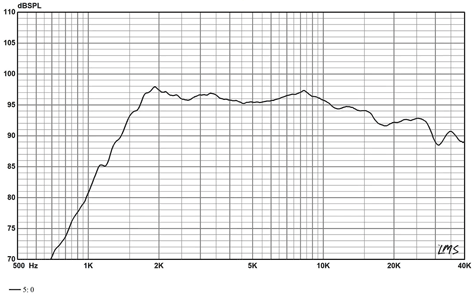

Frequency Response

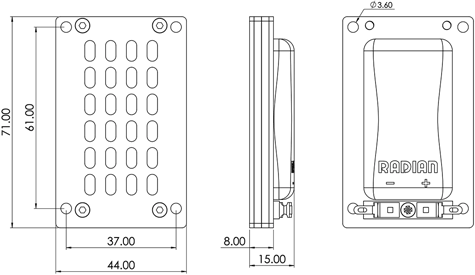

Dimensional Drawing

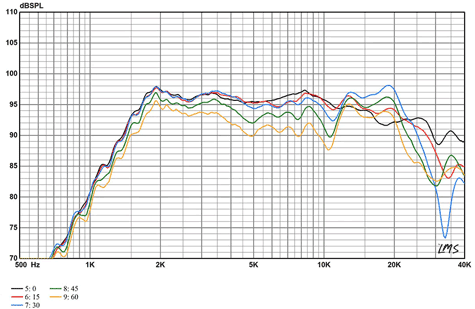

Horizontal Directivity

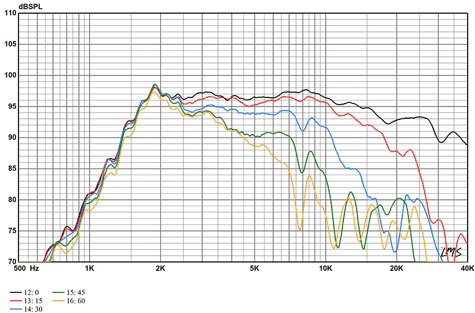

Vertical Directivity
