• NEW RADIAN LM8K WIDE BAND PLANAR RIBBON DRIVER HANDLES 60 WATTS AES FROM 250HZ TO 20KHZ
• WIDE FREQUENCY RANGE FROM 250HZ TO 20KHZ & EFFICIENCY IS 95dB SPL
• EXCEPTIONAL MIDRANGE & CLEAN EXTENDED HIGH FREQUENCIES DESIGNED FOR LONG TERM OPERATION STABILITY
• OPEN BACK(DIPOLE) 120°H x 30°V DISPERSION & CLOSED BACK 150°H x 30°V DISPERSION
• ADVANCED HIGH TEMPERATURE POLYMER DIAPHRAGM & LIGHTWEIGHT NEODYMIUM MAGNET FOR HIGH MAGNETIC FLUX
• FOR USE IN LINE ARRAY SPEAKER SYSTEMS, HOME HI-FI SPEAKER SYSTEMS, PA SPEAKERS, ETC.
• 8 OHMS

THE RADIAN LM8K WIDE BAND PLANAR RIBBON DRIVER HAS A WIDE FREQUENCY RANGE FROM 150HZ TO 20KHZ!
	RADIAN LM8K
	Radian LM8K Item Price: $179.95
WIDE BAND PLANAR RIBBON DRIVER MODEL  - LM8K
Specifications
Impedance	8 ohms
D.C. Resistance	7 ohms
AES Power Rating	60 Watts above 250Hz
Short Term Power Rating	100 Watts above 500Hz - 5kHz
Long Term Power Rating	200 Watts above 500Hz - 5kHz
Sensitivity (1W/1m) - No Waveguide	95dB SPL
Frequency Response	250Hz - 20kHz
Recommended Crossover	250Hz @ 12dB SPL or 500Hz @ 6dB SPL
Horizontal x Vertical Coverage Dipole (Open Back)	120°H x 30°V
Horizontal x Vertical Coverage (Closed Back)	150°H x 30°V
Displacement Limit For Voice Coil	.7mm
Mounting Information
Overall Height	7.87" / 200mm
Overall Width	3.5" / 89mm
Overall Depth (without terminal)	.51" / 13mm
Net Weight	1.72 lb. / .78 kg.
Materials
Diaphragm	High Temperature Polymer
Current Carrying Conductors	Aluminum Foil
Front Plate Material	Powder Coated Steel
Magnet	Neodymium

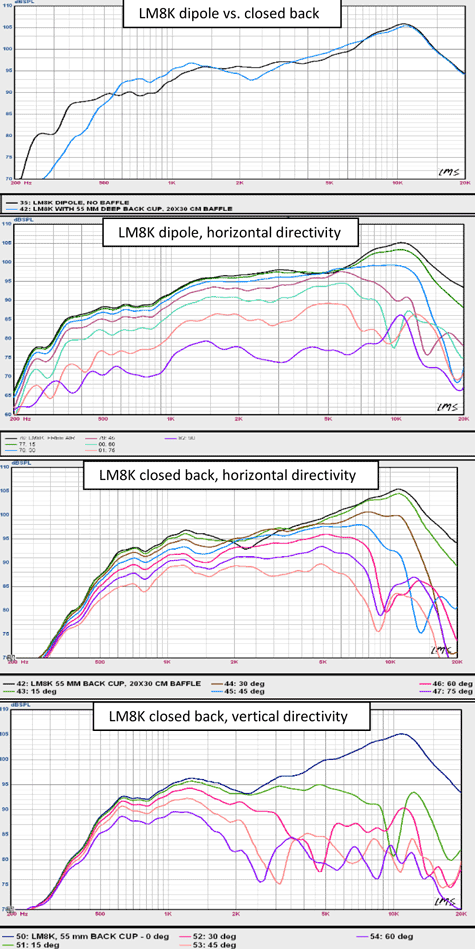

Frequency Responses

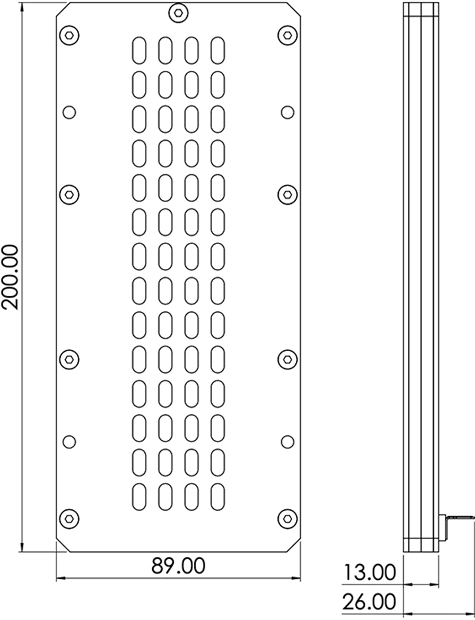

Dimensional Drawing
