Jensen MOD Series
MOD10-70-8 - 10" GUITAR & BASS SPEAKER
|
|
|
MOD10-70-8 - 10" GUITAR & BASS SPEAKER |
 |
Item Price: $73.29 |

|
MOD10-70-8 - 8 ohm version |
|
SPEAKER
MODEL |
MOD10-70-8 |
| Specifications | |
| Nominal Basket Diameter | 10" / 259mm |
| Impedance | 8 ohms |
| RMS Power | 70 Watts |
| Program Power | 140 Watts |
| Sensitivity (1W/1m) | 98.2dB |
| Voice Coil Diameter | 1.5" / 38mm |
| Magnet Assembly Weight | 15 oz. |
| Net Weight | 5.5 lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Epotex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 9.09" / 231mm |
| Overall Depth | 3.64" / 92.5mm |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 99 Hz |
| Impedance (Re) | 5.0 ohms |
| Coil Inductance (Le) | .52mH |
| Electromagnetic Q (Qes) | .73 |
| Mechanical Q (Qms) | 16.28 |
| Total Q (Qts) | .69 |
| Compliance Equivalent Vol. (Vas) | 19.8 Liters/.7cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Surface Area of Cone (Sd) | .0330 m2 |
| Efficiency (Half Space) % | 2.58% |
| Pe Maximum (Watts) | 140 |
| Dimensional Drawing | |
 |
|

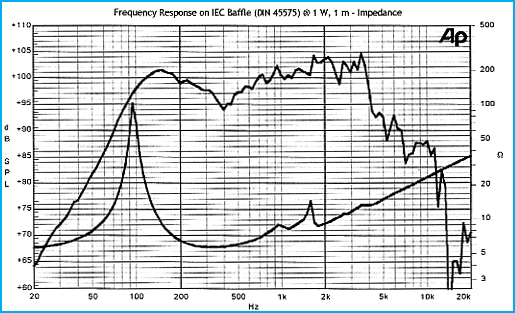

| Frequency Response | |
 |
|
