Jensen MOD Series
MOD10-50 - 10" GUITAR & BASS SPEAKER
|
|
|
MOD10-50 - 10" GUITAR & BASS SPEAKER |
 |
Item Price: $62.73 |

|
MOD10-50-4 - 4 ohm version |
|
MOD10-50-8 - 8 ohm version |
|
|
MOD10-50-16 - 16 ohm version |
|
|
MOD10-50-32 - 32 ohm version |
|
| SPEAKER MODEL | MOD10-50 |
| Specifications | |
|
Nominal
Basket Diameter |
10" / 259mm |
| RMS Power | 50 Watts |
| Program Power | 100 Watts |
| Sensitivity (1W/1m) | 95.8dB |
| Voice Coil Diameter | 1.25" / 32mm |
| Magnet Assembly Weight | 15 oz. |
| Net Weight | 4.3 lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Epotex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 9.09" / 231mm |
| Overall Depth | 3.6" / 91.5mm |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 107 Hz |
| Impedance (Re) | 6.2 ohms |
| Coil Inductance (Le) | .62mH |
| Electromagnetic Q (Qes) | 1.29 |
| Mechanical Q (Qms) | 16.84 |
| Total Q (Qts) | 1.2 |
| Compliance Equivalent Vol. (Vas) | 20.8 Liters/.73cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Surface Area of Cone (Sd) | .0330 m2 |
| Efficiency (Half Space) % | 1.87% |
| Pe Maximum (Watts) | 100 |

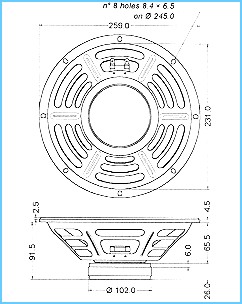

| Dimensional Drawing | |
 |
|

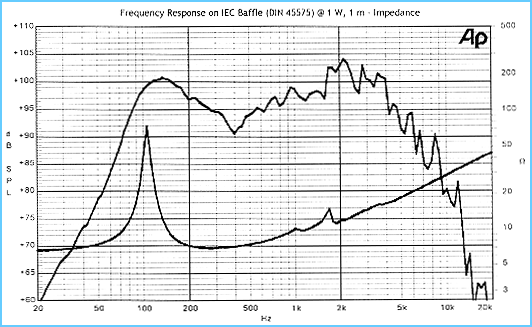

| Frequency Response | |
 |
|
