Jensen 'C Series'
C12K - 12" GUITAR SPEAKER
|
|
|
C12K - 12" GUITAR SPEAKER |
|
SOUNDS GREAT CLEAN OR WHEN PUSHED WITH NICE PRONOUNCED MIDS & TIGHT BASS! |
|
|
|
Item Price: $130.07 |
|
|
C12K-4 - 4 ohm version |
|
C12K-8 - 8 ohm version |
|
|
C12K-16 - 16 ohm version |
|
|
SPEAKER
MODEL |
C12K |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 306mm |
|
RMS Power |
100
Watts |
| Program Power | 200 Watts |
|
Frequency
Response |
70Hz
-7kHz |
|
Sensitivity
(1W/1m) |
99.1dB |
|
Voice
Coil Diameter |
2" / 50mm |
| Magnet Assembly Weight | 51.2 oz. |
| Net Weight | 10.4lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 10.91" / 277mm |
| Overall Depth | 5.24" / 133mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 107 Hz |
| Impedance
(Re) |
12 ohms |
| Coil Inductance (Le) | 1.36mH |
| Electromagnetic Q (Qes) | .78 |
| Mechanical Q (Qms) | 22.37 |
| Total Q (Qts) | 0.75 |
| Compliance Equiv. Vol. (Vas) | 26 Liters/.92cu. ft. |
| Voice Coil Overhang (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .04908 m2 |
| Efficiency (Half Space) % | 3.89% |
| Pe Maximum (Watts) | 200 |
|

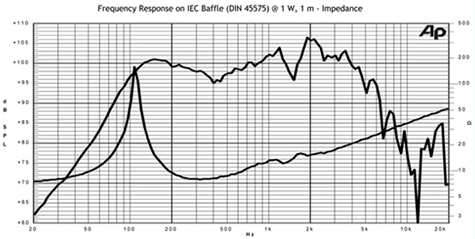

Frequency Response |
|
 |
|
| Mounting Dimensions | |
|
|
|
