Jensen 'C Series'
C10R - 10" GUITAR SPEAKER
|
|
|
C10R - 10" GUITAR SPEAKER |
|
|
Item Price: $55.95 |
|
|
C10R-8 - 8 ohm version |
|
SPEAKER
MODEL |
C10R |
|
Specifications |
|
|
Nominal
Basket Diameter |
10"
/ 259mm |
|
RMS Power |
25
Watts |
| Program Power | 50 Watts |
|
Frequency
Response |
80Hz
-6kHz |
|
Sensitivity
(1W/1m) |
94.7dB |
|
Voice
Coil Diameter |
1"
/ 25mm |
| Magnet Assembly Weight | 9.5 oz. |
| Net Weight | 2.65 lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 9.09" / 231mm |
| Overall Depth | 3.48" / 88.4mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 96 Hz |
| Impedance
(Re) |
6.6 ohms |
| Coil Inductance (Le) | .53mH |
| Electromagnetic Q (Qes) | 1.66 |
| Mechanical Q (Qms) | 10.56 |
| Total Q (Qts) | 1.44 |
| Compliance Equivalent Vol. (Vas) | 29.7 Liters/1.05cu. ft. |
| Voice Coil Overhang (Xmax) | .8mm |
| Surface Area of Cone (Sd) | .033 m2 |
| Efficiency (Half Space) % | 1.5% |
| Pe Maximum (Watts) | 50 |

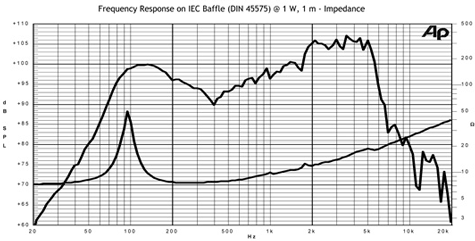

| Frequency Response | |
 |
|

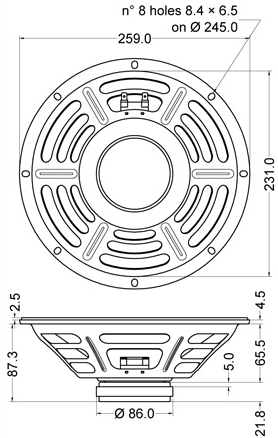

| Mounting Dimensions | |
 |
|
