Jensen 'C Series'
C10Q - 10" GUITAR SPEAKER
|
|
|
C10Q - 10" GUITAR SPEAKER |
|
|
Item Price: $72.90 |
|
|
C10Q-8 - 8 ohm version |
|
C10Q-16 - 16 ohm version |
|
SPEAKER
MODEL |
C10Q |
|
Specifications |
|
|
Nominal
Basket Diameter |
10"
/ 259mm |
|
RMS Power |
35
Watts |
| Program Power | 70 Watts |
|
Frequency
Response |
80Hz
-6kHz |
|
Sensitivity
(1W/1m) |
95.2dB |
|
Voice
Coil Diameter |
1.26"
/ 32mm |
| Magnet Assembly Weight | 15 oz. |
| Net Weight | 3.65 lbs. |
|
Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Epotex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 9.09" / 231mm |
| Overall Depth | 3.6" / 91.5mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 96 Hz |
| Impedance
(Re) |
6.0 ohms |
| Coil Inductance (Le) | .62mH |
| Electromagnetic Q (Qes) | 1.34 |
| Mechanical Q (Qms) | 11.57 |
| Total Q (Qts) | 1.2 |
| Compliance Equivalent Vol. (Vas) | 25.7 Liters/.91cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Surface Area of Cone (Sd) | .033 m2 |
| Efficiency (Half Space) % | 1.61% |
| Pe Maximum (Watts) | 70 |

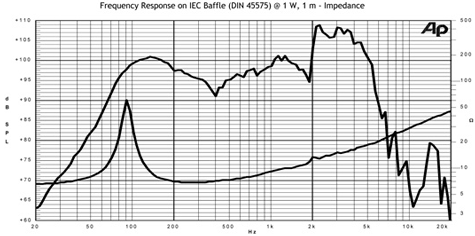

| Frequency Response | |
 |
|

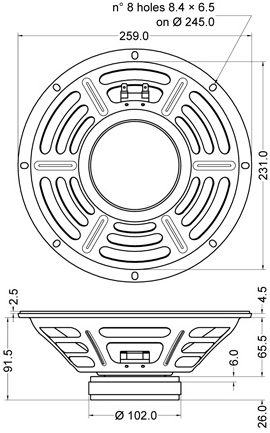

| Dimensional Drawing | |
 |
|
