• NEW EMINENCE GEORGE ALESSANDRO SIGNATURE GA10-SC69 IS A 10" GUITAR SPEAKER FROM THE 'SIGNATURE SERIES' GUITAR SPEAKER LINEUP
• POWER HANDLING OF 40 WATTS RMS & 80 WATTS PROGRAM & WIDE FREQUENCY RANGE FROM 80HZ TO 3.7KHZ
• GOOD EFFICIENCY OF 100.4DB SPL & 1.75" COPPER VOICE COIL
• WHEN PUSHED IT HAS SWEET SOUNDING HARMONICS & BREAKUP
• CLEAN HEADROOM WITH A TIGHT SOUND THANKS TO ITS HIGH MOTOR STRENGTH OF 12.48TM
• WELL SUITED FOR APPLICATIONS IN OPEN OR CLOSED BACK CABINETS
• MADE BY HAND IN THE USA
• AVAILABLE IN 8 OHMS ONLY

EMINENCE GA10-SC69 GEORGE ALESSANDRO 10" GUITAR SPEAKER DELIVERS SWEET HARMONICS WITH A TIGHT SOUND!
Free UPS Ground Shipping in the U.S.	GA10-SC69  -  8 ohms Item Price: $124.99
SPEAKER MODEL	GA10-SC69
SPECIFICATIONS
Nominal Basket Diameter	10" / 254mm
Impedance	8 ohms
RMS Power Rating	40 Watts
Peak Power Rating	80 Watts
Usable Frequency Response	80Hz-3.7kHz
Voice Coil Diameter	1.75" / 44.5mm
Sensitivity (1W/1m)	100.4 dB SPL
Magnet Weight	38 oz.
MOUNTING INFORMATION
Overall Diameter	10.11" / 256.8mm
Bolt Circle Diameter	9.6" / 243.8mm
Baffle Cutout Diameter	9.13" / 231.9mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.22" / 5.6mm
Overall Depth	4.13" / 104.9mm
Net Weight	7.2 lbs. / 3.27 kg.
Shipping Weight	8.3 lbs. / 3.76 kg.
MATERIALS
Basket	Pressed Steel
Voice Coil	Copper
Coil Former Material	Paper
Dust Cap	Solid Composition Felt
Cone	Paper
Surround	Paper
Core	Non Vented
Magnet	Ferrite
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	98.1 Hz
Impedance (Re)	6.42 ohms
Coil Inductance (Le)	0.5mH
Electromagnetic Q (Qes)	.47
Mechanical Q (Qms)	12.92
Total Q (Qts)	.45
Compliance Equiv. Vol. (Vas)	26.05Liters / .92 cu. ft.
BL Product (BL)	12.48 T-M
Voice Coil Overhang (Xmax)	.79mm
Diaphragm Mass (Mms)	18.5 Grams
Surface Area of Cone (Sd)	.03661m2

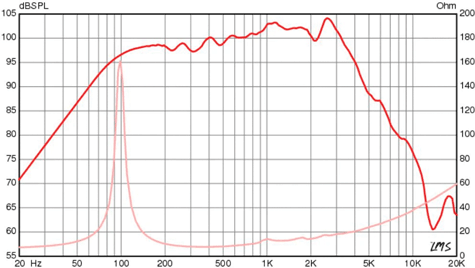

FREQUENCY RESPONSE GRAPH
