GA10-SC64 - 10" GUITAR SPEAKER
|
|
|
GA10-SC64 - 10" GUITAR SPEAKER |
|
EMINENCE GA10-SC64 GEORGE ALESSANDRO 10" GUITAR SPEAKER DELIVERS A WARM TIGHT SOUND WITH CLEAR WARM MIDS! |
|
|
Free UPS Ground Shipping in the U.S. |
GA10-SC64-8 - 8 ohms
Item Price: $114.99 |
|
GA10-SC64-16 - 16 ohms
Item Price: $114.99 |
|
| SPEAKER MODEL | GA10-SC64 |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 10" / 254mm |
| Impedance | 8 or 16 ohms |
| RMS Power Rating | 20 Watts |
| Peak Power Rating | 40 Watts |
| Usable Frequency Response | 100Hz-5.5kHz |
| Voice Coil Diameter | 1" / 25mm |
| Sensitivity (1W/1m) | 98.2dB |
| Magnet Weight | 15 oz. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.11" / 256.8mm |
| Bolt Circle Diameter | 9.6" / 243.8mm |
| Baffle Cutout Diameter | 9.13" / 231.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.22" / 5.6mm |
| Overall Depth | 3.92" / 99.7mm |
| Net Weight | 3.3lbs. / 1.5 kg. |
| Shipping Weight | 4.4lbs. / 2 kg. |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper |
| Dust Cap | Solid Composition Felt |
| Cone | Paper |
| Surround | Paper |
| Core | Non Vented |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 7.58 ohms |
| Coil Inductance (Le) | 0.48mH |
| Electromagnetic Q (Qes) | 1.38 |
| Mechanical Q (Qms) | 16.89 |
| Total Q (Qts) | 1.28 |
| Compliance Equiv. Vol. (Vas) | 33.49Liters / 1.18 cu. ft. |
| BL Product (BL) | 7.05 T-M |
| Voice Coil Overhang (Xmax) | 1.59mm |
| Diaphragm Mass (Mms) | 14 Grams |
| Surface Area of Cone (Sd) | .03661m2 |

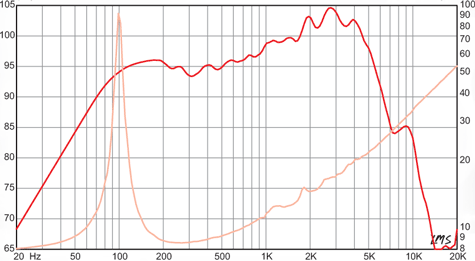

| FREQUENCY RESPONSE GRAPH | |
 |
|
