GA-SC64 - 12" GUITAR SPEAKER
|
|
|
GA-SC64 - 12" GUITAR SPEAKER |
|
THE GA-SC64 GEORGE ALESSANDRO 12" GUITAR SPEAKER DELIVERS A WARM TIGHT SOUND! |
|
|
Free UPS Ground Shipping in the U.S. |
GA-SC64-8 - 8 ohms
Item Price: $144.99 |
| SPEAKER MODEL | GA-SC64 |
|
SPECIFICATIONS |
|
| Nominal Basket Diameter | 12" / 305mm |
| Impedance | 8 ohms |
| RMS Power Rating | 40 Watts |
| Peak Power Rating | 80 Watts |
| Usable Frequency Response | 80Hz-5.3kHz |
| Voice Coil Diameter | 1.75" / 44.5mm |
| Sensitivity (1W/1m) | 100.5dB |
| Magnet Weight | 38 oz. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.17" / 309.1mm |
| Bolt Circle Diameter | 11.75" / 298.5mm |
| Baffle Cutout Diameter | 11.13" / 282.7mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.24" / 6.1mm |
| Overall Depth | 5.13" / 130.2mm |
| Shipping Weight | 7.5lbs. / 3.4 kg. |
| Shipping Weight | 8.4lbs. / 3.81 kg. |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Paper |
| Dust Cap | Solid Composition Felt |
| Cone | Paper |
| Surround | Paper |
| Core | Non Vented |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 88 Hz |
| Impedance (Re) | 7.63 ohms |
| Coil Inductance (Le) | 0.67mH |
| Electromagnetic Q (Qes) | 0.6 |
| Mechanical Q (Qms) | 16.82 |
| Total Q (Qts) | .58 |
| Compliance Equiv. Vol. (Vas) | 44.96Liters / 1.59 cu. ft. |
| BL Product (BL) | 13.8 T-M |
| Voice Coil Overhang (Xmax) | 1.23mm |
| Diaphragm Mass (Mms) | 27 Grams |
| Surface Area of Cone (Sd) | .05195m2 |

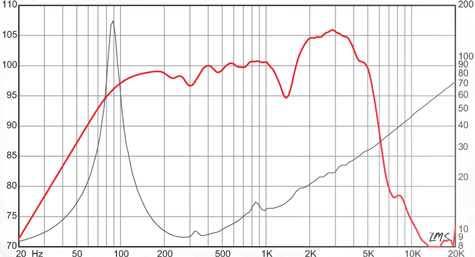

| FREQUENCY RESPONSE GRAPH | |
 |
|
