• THE GEORGE ALESSANDRO SIGNATURE GA-SC59 12" GUITAR SPEAKER FROM THE 'SIGNATURE SERIES' GUITAR SPEAKER LINEUP
• FEATURES AN ALNICO MAGNET & NICELY DESIGNED PAPER CONE
• POWER HANDLING OF 40 WATTS RMS
• FULL BODIED LOW END, NICE MID TONE GRUNT & DETAILED PRONOUNCED HIGHS
• NICE OVERALL BALANCE & CLARITY FOR THE DISCERNING GUITAR PLAYER
• WELL SUITED FOR APPLICATIONS IN OPEN OR CLOSED BACK CABINETS
• MADE BY HAND IN THE USA
• AVAILABLE IN 8 OHMS ONLY

THE GA-SC59 GEORGE ALESSANDRO 12" GUITAR SPEAKER DELIVERS A WARM TIGHT SOUND!
Free UPS Ground Shipping in the U.S.	GA-SC59 - 8 ohms Item Price: $274.99
SPEAKER MODEL	GA-SC59
SPECIFICATIONS
Nominal Basket Diameter	12" / 305mm
Impedance	8 ohms
RMS Power Rating	40 Watts
Peak Power Rating	80 Watts
Usable Frequency Response	80Hz-5.2kHz
Voice Coil Diameter	1.75" / 44.5mm
Sensitivity (1W/1m)	100dB
Magnet Weight	35 oz.
MOUNTING INFORMATION
Overall Diameter	12.17" / 309.1mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter	11.13" / 282.7mm
No. Of Mounting Holes	8
Mounting Hole Diameter	0.24" / 6.1mm
Overall Depth	6.25" / 158.8mm
Shipping Weight	8.4lbs. / 3.81 kg.
Shipping Weight	10.2lbs. / 4.63 kg.
MATERIALS
Basket	Pressed Steel
Voice Coil	Copper
Coil Former Material	Paper
Dust Cap	Solid Composition Felt
Cone	Paper
Surround	Paper
Core	Non Vented
Magnet	Alnico
THIELE-SMALL PARAMETERS
Resonant Frequency (fs)	89 Hz
Impedance (Re)	7.4 ohms
Coil Inductance (Le)	0.61mH
Electromagnetic Q (Qes)	0.63
Mechanical Q (Qms)	19.73
Total Q (Qts)	.61
Compliance Equiv. Vol. (Vas)	41.21Liters / 1.46 cu. ft.
BL Product (BL)	13.55 T-M
Voice Coil Overhang (Xmax)	1.61mm
Diaphragm Mass (Mms)	28 Grams
Surface Area of Cone (Sd)	.05195m2

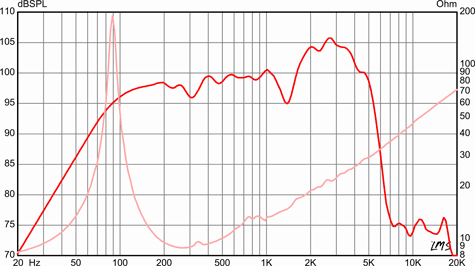

FREQUENCY RESPONSE GRAPH
