• THE FAITAL PRO 5FE120 5" MID-BASS SPEAKER CAN HANDLE 80 WATTS AES & 160 WATTS PROGRAM POWER
• WIDE FREQUENCY RANGE FROM 63HZ TO 6.3KHZ, EFFICIENCY OF 95DB SPL & WEIGHS ONLY 2.48 LBS. THANKS
• 5.25MM XMAX FOR A TIGHT BASS SOUND WITH CLEAN NATURAL SOUNDING MIDS
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR BASS, MID-BASS OR MIDRANGE IN 2 OR 3-WAY QUALITY SPEAKER SYSTEMS
• AVAILABLE IN 4 OR 8 OHMS

THE FAITAL PRO 5FE120 5" SPEAKER HAS A TIGHT FULL SOUNDING BASS WITH CLEAN FLAT MIDS W/ 160 WATTS POWER HANDLING!
	4 ohm version Item Price: $49.95
	8 ohm version Item Price: $49.95
WOOFER MODEL	5FE120
Specifications
Nominal Basket Diameter	5" / 130mm
Impedance	4 or 8 ohms
AES Power Rating	80 Watts
Program Power	160 Watts
Frequency Response	63Hz - 6.3kHz
Sensitivity (1W/1m)	88dB SPL
Voice Coil Diameter	1.26" / 32mm
Voice Coil Length	12.5 mm
Air Gap Height	6.0 mm
X Damage	9.5 mm
BL Factor	6.9 N/A
Mounting Information
Overall Diameter	5.7"/4.9" - 144.8mm/124.5mm
Bolt Circle Diameter	5.24" / 133mm
Baffle Cutout Diameter-Front Mount	4.49" / 114mm
No. Of Mounting Holes	4
Overall Depth	2.56" / 65mm
Flange & gasket Thickness	0.25" / 6.5mm
Net Weight	2.48 lb. / 1.13 kg.
Materials
Basket	Steel
Cone	Paper Pulp (Weather Proof)
Surround	Rubber
Surround Shape	Half Roll
Former Material	Kapton
Voice Coil	Copper
Demodulation	Aluminum Ring
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	65 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	0.41 mH
Mechanical Q (Qms)	7.4
Electrical Factor (Qes)	.51
Total Q (Qts)	.47
Comp. Equivelant Vol. (Vas)	0.17 ft3 / 4.92 Liters
Voice Coil Overhang (Xmax)	5.25 mm
Surface Area of Cone (Sd)m2	0.01237m2
Reference Efficiency	.25%
Diaphragm Mass (Mms)	11 Grams
Mechanical Compliance (Cms)	.55 mm/N
Mechanical Resistance (Rms)	.6 Kg/s
EBP	127

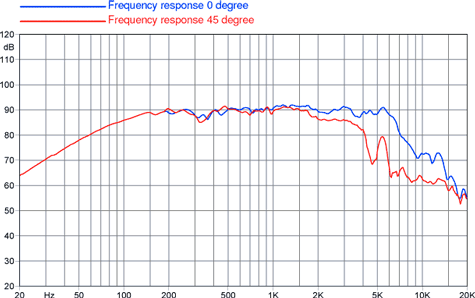

Frequency Response

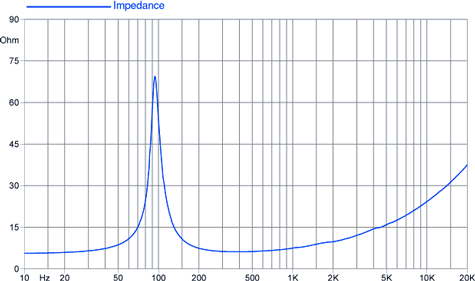

Free Air Impedance Curve

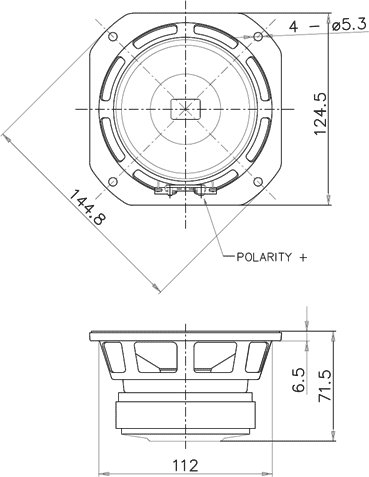

Mounting Dimensions
