• THE FAITAL PRO 15XL1400 15" SUBWOOFER SPEAKER CAN HANDLE A MASSIVE 1,400 WATTS AES & 2,800 WATTS PROGRAM POWER
• FEATURES A VERY HIGH XMAX OF 12.9MM FOR A POWERFUL STRONG BASS SOUND
• 97DB SPL, BL FACTOR OF 27 & WEIGHS 24.7 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• HIGH X DAMAGE OF 28MM
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR BASS REFLEX(PORTED) SPEAKER CABINETS INCLUDING BASS GUITAR & PA SYSTEMS, ETC.
• AVAILABLE IN 4 OR 8 OHMS

CHEST POUNDING 15" SUBWOOFER HANDLES 2,800 WATTS PROGRAM W/ A HIGH 12.9MM XMAX & HIGH X DAMAGE OF 28MM!
	4 Ohm Version Item Price: $743.95
	8 Ohm Version Item Price: $743.95
WOOFER MODEL	15XL1400
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	1,400 Watts
Program Power	2,800 Watts
Frequency Response	40Hz -2.5kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	31 mm
Air Gap Height	15.5 mm
X Damage	28 mm
BL Factor	26.7 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	13.85" / 351.8mm
No. Of Mounting Holes	8
Overall Depth	8.46" / 215mm
Flange & gasket Thickness	0.54" / 13.7mm
Net Weight	24.7 lb. / 11.2 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	38 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	1.6 mH
Mechanical Q (Qms)	10.4
Electrical Factor (Qes)	.34
Total Q (Qts)	.33
Comp. Equivelant Vol. (Vas)	2.81 ft3 / 79.7 Liters
Voice Coil Overhang (Xmax)	12.92 mm
Surface Area of Cone (Sd)m2	0.0780m2
Reference Efficiency	1.24%
Diaphragm Mass (Mms)	190 Grams
Mechanical Compliance (Cms)	.1 mm/N
Mechanical Resistance (Rms)	4.36 Kg/s

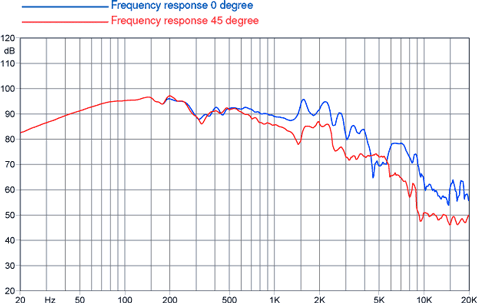

Frequency Response

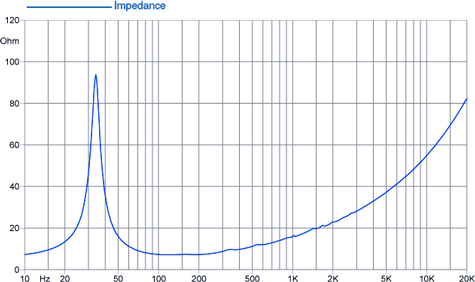

Free Air Impedance Curve

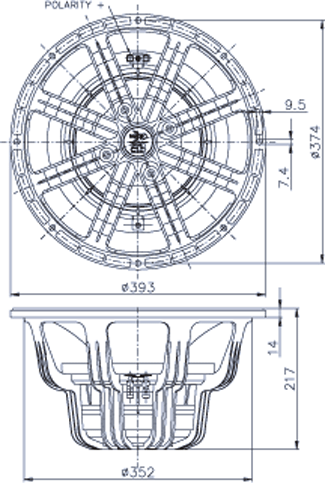

Mounting Dimensions
