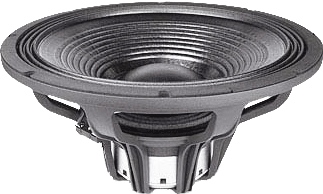

• THE FAITAL PRO 15HP1060 15" SPEAKER CAN HANDLE 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER
• FEATURES A LARGE 4" VOICE COIL & WEIGHS ONLY 15.65 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• VERY HIGH 12.45MM XMAX FOR A STRONG BASS & WIDE FREQUENCY RANGE FROM 40HZ TO 2.0KHZ
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR BASS REFLEX(PORTED) SPEAKER CABINETS INCLUDING BASS GUITAR & PA SYSTEMS, ETC.
• AVAILABLE IN 4 OR 8 OHMS

POWERFUL & TIGHT SOUNDING CHEST POUNDING 15" SUBWOOFER THAT HANDLES A 1,000 WATT AES & 2,000 WATTS PROGRAM!
	4 Ohm Version Item Price: $552.95
	8 Ohm Version Item Price: $552.95
WOOFER MODEL	15HP1060
Specifications
Nominal Basket Diameter	15" / 380mm
Impedance	8 ohms
AES Power Rating	1,000 Watts
Program Power	2,000 Watts
Frequency Response	40Hz - 2.0kHz
Sensitivity (1W/1m)	97dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	28.9 mm
Air Gap Height	12 mm
X Damage	21 mm
BL Factor	24.8 N/A
Mounting Information
Overall Diameter	15.47" / 393mm
Bolt Circle Diameter	14.72" / 374mm
Baffle Cutout Diameter-Front Mount	13.94" / 354mm
No. Of Mounting Holes	8
Overall Depth	7.65" / 194.3mm
Flange & gasket Thickness	0.54" / 13.7mm
Net Weight	15.65 lb. / 7.1 kg.
Shipping Weight	18.52 lb. / 8.4 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	40 Hz
Impedance (Re)	5.0 ohms
Coil Inductance (Le)	1.32 mH
Mechanical Q (Qms)	11.4
Electrical Factor (Qes)	.32
Total Q (Qts)	.31
Comp. Equivelant Vol. (Vas)	3.09 ft3 / 87.5 Liters
Voice Coil Overhang (Xmax)	12.45 mm
Surface Area of Cone (Sd)m2	0.078m2
Reference Efficiency	1.7%
Diaphragm Mass (Mms)	156.3 Grams
Mechanical Compliance (Cms)	.01 mm/N
Mechanical Resistance (Rms)	3.44 Kg/s

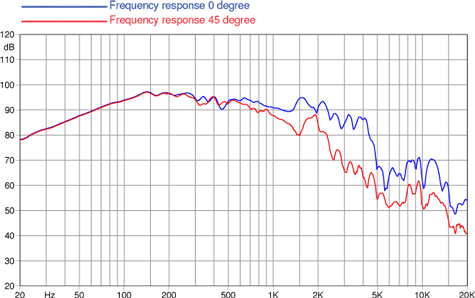

Frequency Response

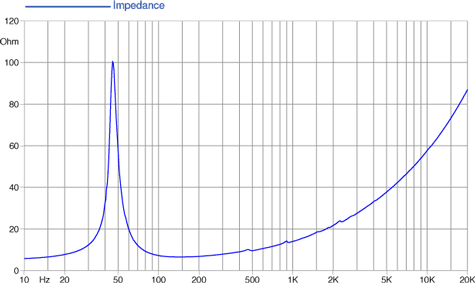

Free Air Impedance Curve

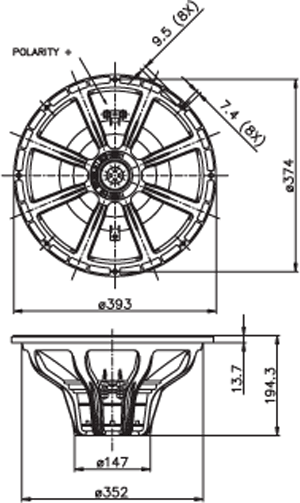

Mounting Dimensions
