• NEW FAITAL PRO 12RS430 12" SPEAKER CAN HANDLE 400 WATTS AES & 800 WATTS PROGRAM POWER
• VERY HIGH XMAX OF 13.57MM  FOR A SUPER TIGHT & DEEP SOUND DOWN TO 30HZ
• FEATURES A HEAVY DUTY HALF ROLL RUBBER SURROUND
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR PORTED SPEAKER CABINETS FOR BASS GUITAR, SUBWOOFER SYSTEMS 2 OR 3-WAY SPEAKER SYSTEMS
• AVAILABLE IN 8 OHMS ONLY

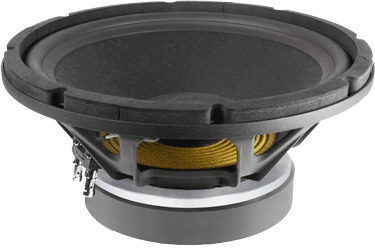

THE FAITAL PRO 12RS430 HAS A HALF ROLL RUBBER SURROUND, HANDLES 800 WATTS PROGRAM & A HIGH 13.57MM XMAX!
	8 Ohms Item Price: $296.95
WOOFER MODEL	12RS430
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	400 Watts
Program Power	800 Watts
Frequency Response	30Hz - 2.5kHz
Sensitivity (1W/1m)	93dB SPL
Voice Coil Diameter	2.56" / 65mm
Voice Coil Length	29.8 mm
Air Gap Height	8.0 mm
X Damage	21.5 mm
Flux Density	1.5 T
BL Factor	18 N/A
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 282mm
No. Of Mounting Holes	8
Overall Depth	6.18" / 157mm
Flange & gasket Thickness	0.77" / 19.5mm
Net Weight	15.4 lb. / 7.0 kg.
Shipping Weight	17.2 lb. / 7.8 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Rubber
Surround Shape	Half Roll
Former Material	Glass Fiber
Voice Coil	Copper
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	30 Hz
Impedance (Re)	6.8 ohms
Coil Inductance (Le)	.78 mH
Mechanical Q (Qms)	10.0
Electrical Factor (Qes)	.36
Total Q (Qts)	.35
Comp. Equivelant Vol. (Vas)	4.63 ft3 / 131.2 Liters
Voice Coil Overhang (Xmax)	13.57 mm
Surface Area of Cone (Sd)m2	0.0552m2
Reference Efficiency	0.95%
Diaphragm Mass (Mms)	91.3 Grams
Mechanical Compliance (Cms)	.31 mm/N
Mechanical Resistance (Rms)	1.7 Kg/s
EBP	83 Hz

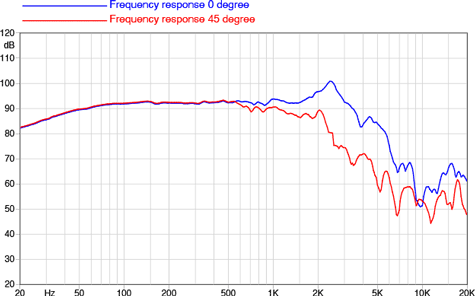

Frequency Response

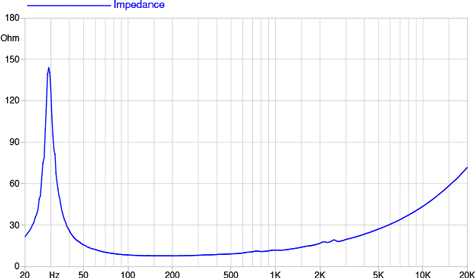

Free Air Impedance Curve

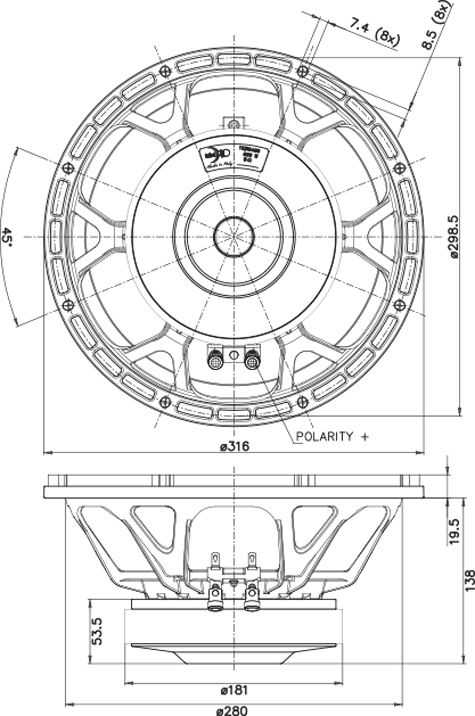

Mounting Dimensions
