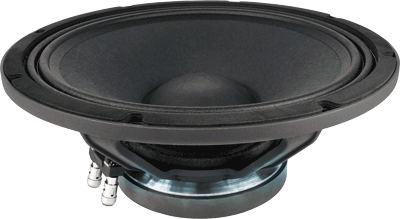

• THE FAITAL PRO 12PR330 12" WOOFER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• HIGH 7.37MM XMAX FOR STRONG TIGHT BASS SOUND WITH GOOD MIDS
• GOOD SENSITIVITY OF 98DB SPL WITH A WIDE FREQUENCY RANGE FROM 50HZ TO 4.0KHZ
• FERRITE MAGNET WEIGHS 9.5 LBS.
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT AS A CLEAN TIGHT SOUNDING BASS GUITAR SPEAKER & 2 OR 3-WAY PA SPEAKER SYSTEMS
• AVAILABLE IN 8 OHMS ONLY

THE FAITAL PRO 12PR330 HAS STRONG TIGHT BASS WITH GOOD MIDS & HANDLES 300 WATTS AES!
	8 Ohms Item Price: $236.95
WOOFER MODEL	12PR330
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	50Hz - 4.0kHz
Sensitivity (1W/1m)	98dB SPL
Voice Coil Diameter	2.5" / 65mm
Voice Coil Length	17.4 mm
Air Gap Height	8 mm
X Damage	15.25 mm
Flux Density	1.2 T
BL Factor	14.2 N/A
Mounting Information
Overall Diameter	12.4" / 315.2mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 282mm
No. Of Mounting Holes	8
Overall Depth	5.31" / 135mm
Flange & gasket Thickness	0.47" / 12mm
Net Weight	9.5 lb. / 4.3 kg.
Shipping Weight	11.0 lb. / 5.0 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	M Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	50 Hz
Impedance (Re)	5.3 ohms
Coil Inductance (Le)	0.76 mH
Mechanical Q (Qms)	10.9
Electrical Factor (Qes)	.42
Total Q (Qts)	.4
Comp. Equivelant Vol. (Vas)	2.39 ft3 / 67.7 Liters
Voice Coil Overhang (Xmax)	7.37 mm
Surface Area of Cone (Sd)m2	0.0489m2
Reference Efficiency	1.96%
Diaphragm Mass (Mms)	50.8 Grams
Mechanical Compliance (Cms)	.2 mm/N
Mechanical Resistance (Rms)	1.46 Kg/s
Frequency Response
Free Air Impedance Curve
Mounting Dimensions
