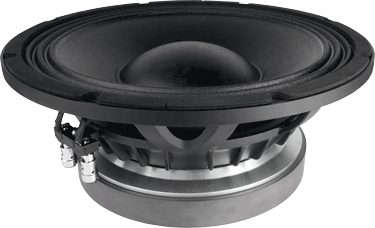

• THE FAITAL PRO 12HP1030 12" HIGH POWER LOW FREQUENCY SPEAKER CAN HANDLE 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER
• VERY HIGH 12.45MM XMAX FOR A VERY CLEAN STRONG SOUND & FREQUENCY RANGE FROM 45HZ TO 1.6KHZ
• FEATURES AN INSIDE/OUTSIDE WOUND COPPER VOICE COIL
• ALUMINUM DEMODULATION RING FOR INCREASED ENSURES LESS DISTORTION AT LOW FREQUENCIES AS WELL AS GREATER EXCURSION
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• DESIGNED FOR VERY HIGH POWER PORTED SUBWOOFER CABINETS
• AVAILABLE IN 8 OHMS ONLY

THE 12HP1030 HANDLES 2,000 WATTS PROGRAM W/ A HIGH 12.45MM XMAX & 24.3 BL FACTOR!
	Item Price: $404.95
WOOFER MODEL	12HP1030
Specifications
Nominal Basket Diameter	12" / 300mm
Impedance	8 ohms
AES Power Rating	1,000 Watts
Program Power	2,000 Watts
Frequency Response	45Hz - 1.6kHz
Sensitivity (1W/1m)	95dB SPL
Voice Coil Diameter	4" / 100mm
Voice Coil Length	28.9 mm
Air Gap Height	12 mm
X Damage	20.5 mm
BL Factor	24.3 N/A
Mounting Information
Overall Diameter	12.44" / 316mm
Bolt Circle Diameter	11.75" / 298.5mm
Baffle Cutout Diameter-Front Mount	11.1" / 282mm
No. Of Mounting Holes	8
Overall Depth	5.79" / 147mm
Flange & gasket Thickness	0.47" / 12mm
Net Weight	24.55 lb. / 11.1 kg.
Shipping Weight	25.57 lb. / 11.6 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Suspension	Triple Roll
Former Material	Glass Fiber
Voice Coil	Copper
Demodulation	Aluminum Ring
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	45 Hz
Impedance (Re)	5 ohms
Coil Inductance (Le)	1.1 mH
Mechanical Q (Qms)	13.8
Electrical Factor (Qes)	.31
Total Q (Qts)	.3
Comp. Equivelant Vol. (Vas)	1.06 ft3 / 29.91 Liters
Voice Coil Overhang (Xmax)	12.45 mm
Surface Area of Cone (Sd)m2	0.0469m2
Reference Efficiency	0.85%
Diaphragm Mass (Mms)	130.5 Grams
Mechanical Compliance (Cms)	.09 mm/N
Mechanical Resistance (Rms)	2.7 Kg/s
EBP	145

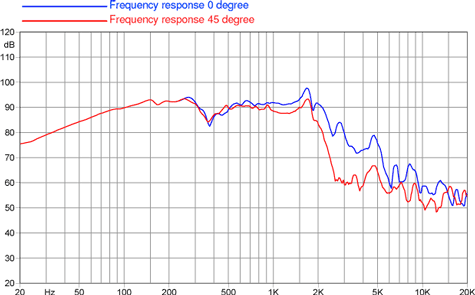

Frequency Response

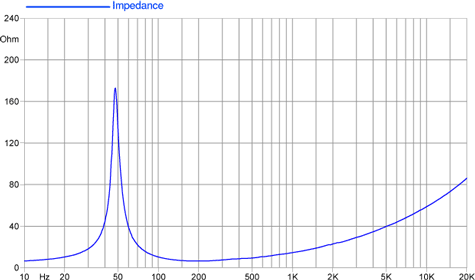

Free Air Impedance Curve

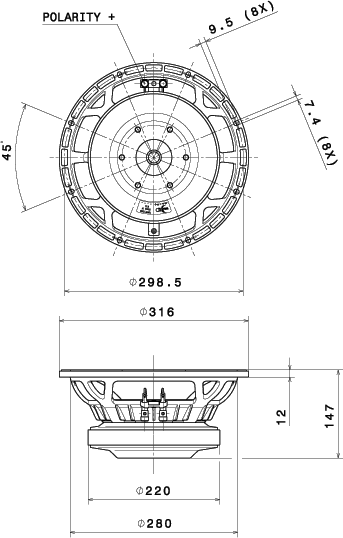

Mounting Dimensions
