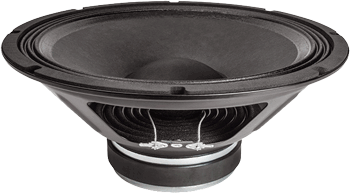

FAITAL PRO 12FE300 - 12" HIGH POWER WOOFER

FAITAL PRO 12FE300 SPEAKER HAS LOUD CLEAN MIDS W/ TIGHT BASS & HANDLES 250 WATTS AES W/ A 5.07MM XMAX!

Faital Pro 12FE300

4 Ohms

Item Price: $136.95

8 Ohms

Item Price: $136.95

WOOFER MODEL 12FE300

Specifications

Nominal Basket Diameter 12" / 300mm
Impedance 4 & 8 ohms
AES Power Rating 250 Watts
Program Power 500 Watts
Frequency Response 50Hz - 4kHz
Sensitivity (1W/1m) 97dB SPL
Voice Coil Diameter 2.05" / 52mm
Winding Depth 12.8 mm
Magnetic Gap Depth 8 mm
X Damage 16.7 mm
BL Factor 12.5 N/A

Mounting Information

Overall Diameter 12.24" / 311mm
Bolt Circle Diameter 11.57" / 294mm
Baffle Cutout Diameter-Front Mount 11.18" / 284mm
No. Of Mounting Holes 8
Overall Depth 5.24" / 133mm
Flange & Gasket Thickness 0.31" / 8mm
Net Weight 7.7 lb. / 3.5 kg.
Shipping Weight 8.8 lb. / 4 kg.

Materials

Basket Steel
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 47 Hz
Impedance (Re) 5.1 ohms
Coil Inductance (Le) 0.8 mH
Mechanical Q (Qms) 15.5
Electrical Factor (Qes) .53
Total Q (Qts) .51
Comp. Equivelant Vol. (Vas) 2.96 ft3 / 83.7 Liters
Voice Coil Overhang (Xmax) 5.07 mm
Surface Area of Cone (Sd)m2 0.0543m2
Reference Efficiency 1.55%
Diaphragm Mass (Mms) 56.4 Grams
Mechanical Compliance (Cms) .2 mm/N
Mechanical Resistance (Rms) 1.1 Kg/s

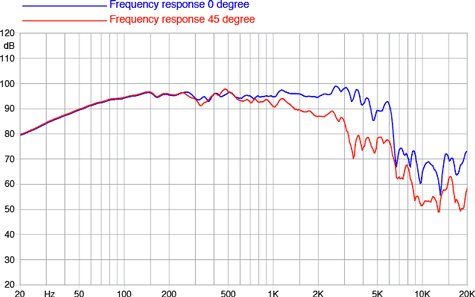

Frequency Response

Faital Pro 12FE300 Frequency

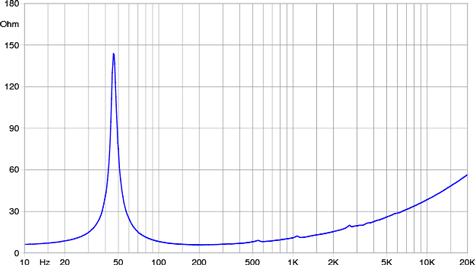

Free Air Impedance Curve
Faital Pro 12FE300 Impedance

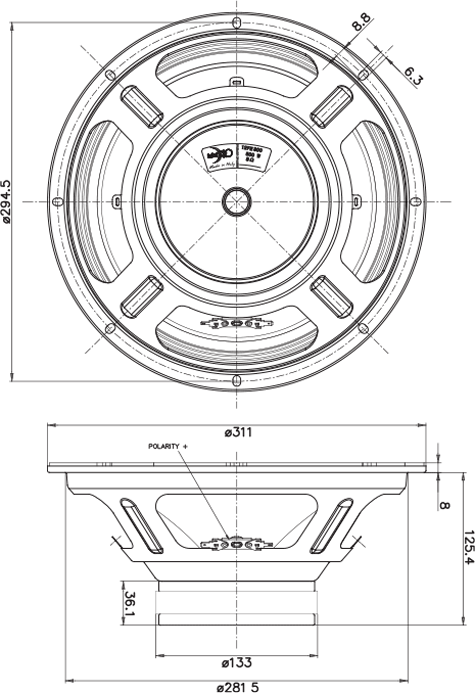

Mounting Dimensions

Faital Pro 12FE300 Drawing
