• THE FAITAL PRO 10FE200 10" SPEAKER CAN HANDLE 150 WATTS AES & 300 WATTS PROGRAM POWER
• EFFICIENCY OF 96DB SPL & A 4.75MM XMAX FOR CLEAN TIGHT MIDS & BASS SOUND
• WIDE FREQUENCY RANGE FROM 50HZ TO 4.5KHZ & FERRITE MAGNET WEIGHS ONLY 4.95 LBS.
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR 2 OR 3-WAY HOME HI-FI, PA SPEAKER SYSTEMS & BASS GUITAR CABINETS
• AVAILABLE IN 4 OR 8 OHMS

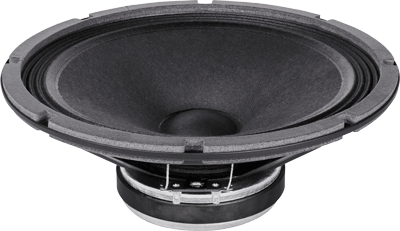

THE FAITAL PRO 10FE200 HAS SMOOTH BASS & LOUD MIDS WITH 150 WATTS AES POWER HANDLING!
	10FE200 - 4 Ohm Version Item Price: $70.99
	10FE200 - 8 Ohm Version Item Price: $70.99
WOOFER MODEL	10FE200
Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	4 or 8 ohms
AES Power Rating	150 Watts
Program Power	300 Watts
Frequency Response	50Hz - 4.5kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	1.46" / 37mm
Voice Coil Length	12 mm
Air Gap Height	8 mm
X Damage	10.4 mm
BL Factor	8.2 N/A
Mounting Information
Overall Diameter	10.1" / 256.8mm
Bolt Circle Diameter	9.6" / 243.8mm
Baffle Cutout Diameter-Front Mount	9.13" / 231.8mm
No. Of Mounting Holes	8
Overall Depth	4" / 102mm
Flange & gasket Thickness	0.31" / 8mm
Net Weight	4.95 lb. / 2.25 kg.
Shipping Weight	5.72 lb. / 2.6 kg.
Materials
Basket	Steel
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Kapton
Voice Coil	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	55 Hz
Impedance (Re)	5.9 ohms
Coil Inductance (Le)	0.42 mH
Mechanical Q (Qms)	11.3
Electrical Factor (Qes)	.74
Total Q (Qts)	.69
Comp. Equivelant Vol. (Vas)	2.18 ft3 / 61.7 Liters
Voice Coil Overhang (Xmax)	4.67 mm
Surface Area of Cone (Sd)m2	0.03597m2
Reference Efficiency	1.34%
Diaphragm Mass (Mms)	24.5 Grams
Mechanical Compliance (Cms)	.4 mm/N
Mechanical Resistance (Rms)	.7 Kg/s

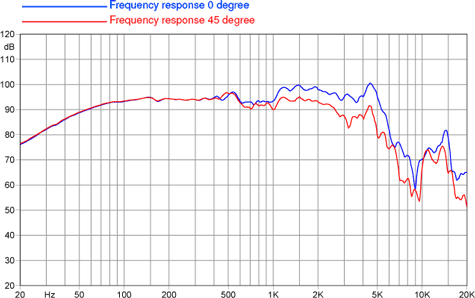

Frequency Response

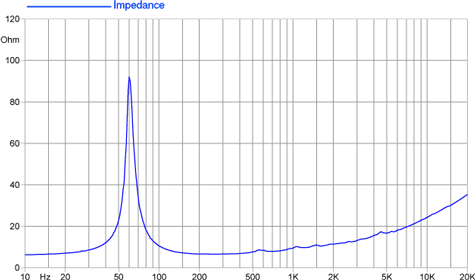

Free Air Impedance Curve

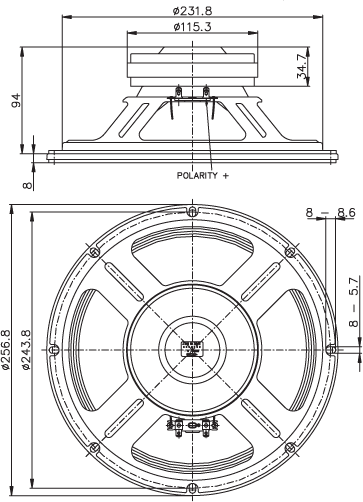

Mounting Dimensions
