EMINENCE OMEGA PRO-15-2KW-8 -15" WOOFER
|
|
|
EMINENCE OMEGA PRO-15-2KW-8 -15" WOOFER |
|
THE EMINENCE OMEGA PRO-15-2KW-8 IS A STRONG SOUNDING WOOFER W/ 1,000 WATTS RMS & 7.1MM XMAX! |
|
|
|
8 Ohms
Item Price: $269.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
OMEGA PRO-15-2KW-8 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
15"
/ 381mm |
|
Impedance |
8 ohms |
|
RMS
Power Rating |
1,000
Watts |
|
Program
Power Rating |
2,000
Watts |
|
Peak
Power Rating |
4,000 Watts |
|
Frequency
Response |
39Hz
- 1.25kHz |
|
Sensitivity
(1W/1m) |
94.9dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
|
Magnet
Weight |
109 oz. |
| Gap Height | .375" / 9.5mm |
| Rec. Enclosure Volume(Vented) | 2.75 - 7.0cu. ft./77.9 - 198.2 Liters |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
15.24" / 387.1mm |
| Bolt Circle Diameter | 14.56" / 369.8mm |
| Baffle Cutout Diameter | 14" / 355.6mm |
| No. Of Mounting Holes | 8 |
|
Mounting
Hole Diameter |
0.275" / 6.985mm |
| Overall Depth | 6.42" / 163mm |
| Net Weight | 22lbs. / 9.98kg. |
| Shipping Weight | 26lbs. / 11.79kg. |
|
MATERIALS |
|
| Basket | Die-Cast Aluminum |
| Cone | Water Resistant Treated Paper |
| Surround | Cloth |
| Dust Cap | Water Resistant Treated Paper |
| Voice Coil | Inside/Outside Copper |
| Former | Fiberglass |
| Core | Vented |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 39.67 Hz |
|
Impedance
(Re) |
5.95 ohms |
| Coil Inductance (Le) | 1.13mH |
| Electromagnetic Q (Qes) | .46 |
| Mechanical Q (Qms) | 13.9 |
| Total Q (Qts) | .44 |
| Compliance Equivalent Vol. (Vas) | 142.5Liters/5.03cu. ft. |
| Voice Coil Overhang (Xmax) | 7.4mm |
| Diaphragm Mass (Mms) | 111.87 Grams |
| Mechanical Compliance (Cms) | .14 mm/N |
| Surface Area of Cone (Sd) | .08563 m2 |
| BL Product (BL) | 19.07 |
| Peak Dia. Displacement Vol. (Vd) | 634cc |

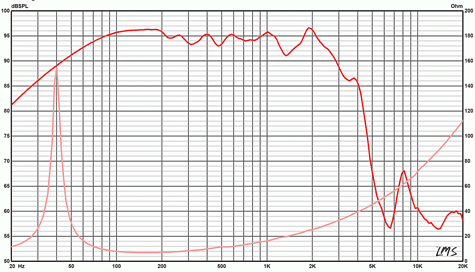

| Omega Pro-15-2KW-8 RESPONSE CURVE | |
 |
|
