Genuine Eminence
CannaBass CB3010N-8 - LIGHTWEIGHT NEODYMIUM 10" BASS SPEAKER
|
|
|
CannaBass CB3010N-8 - LIGHTWEIGHT NEODYMIUM 10" BASS SPEAKER |
|
THE EMINENCE CANNABASS CB3010N-8 DELIVERS A STRONG TIGHT BASS & DETAILED MIDS THAT IS POWERFUL! |
|
|
|
Item Price: $259.99 |
|
WOOFER MODEL |
CB3010N-8 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10" / 254mm |
|
Impedance |
8 ohms |
|
RMS Power Rating |
450 Watts |
| Program Power Rating | 900 Watts |
|
Frequency Response |
43Hz - 3.4kHz |
| Sensitivity | 94dB SPL |
|
Voice Coil Diameter |
3" / 76.2mm |
|
Magnet Weight |
11 oz. |
| Gap Height | 9.27mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.25" / 260.35mm |
| Bolt Circle Diameter | 9.73" / 266.45mm |
| Baffle Cutout Diameter | 9.12" / 247.14mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.28" / 7.1mm |
| Overall Depth | 4.25" / 108mm |
| Net Weight | 7.1 lbs. / 3.22kg. |
| Shipping Weight | 8.9 lbs. / 4.04kg. |
| MATERIALS | |
| Cone | CBD Treated Paper |
| Former Material | Fiberglass |
| Voice Coil | Inside/Outside Copper |
| Magnet | Neodymium |
| Core Details | Vented |
| Basket | Die-Cast Aluminum |
| Surround | Cloth |
| Dust Cap | Hempylene |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 41.62 Hz |
| Impedance (Re) | 5.62 ohms |
| Coil Inductance (Le) | .62mH |
| Electromagnetic Q (Qes) | .25 |
| Mechanical Q (Qms) | 7.95 |
| Total Q (Qts) | .25 |
| Moving Mass (Mms) | 51.42 grams |
| Compliance Suspension (Cms) | .28mm/N |
| Compliance Equivalent Vol. (Vas) | 52.22 Liters/1.95cu. ft. |
| Voice Coil Overhang (Xmax) | 6.48mm |
| Surface Area of Cone (Sd) | .03769m2 |
| BL Product (BL) | 17.22 T-M |
| Peak Diaphragm Displacement Volume(Vd) | 244.23cc |
|

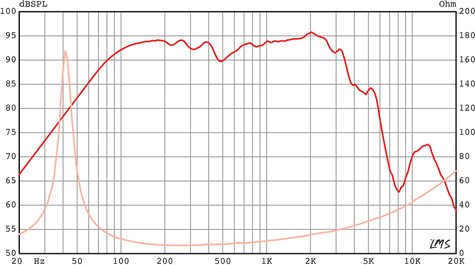

CB3010N-8 RESPONSE CURVE |
|
|
|
|
