BASS LITE S2010 - 10" BASS SPEAKER
|
|
|
BASS LITE S2010 - 10" BASS SPEAKER |
|
THE EMINENCE BASSLITE S2010 IS A LIGHTWEIGHT NEODYMIUM 10" BASS GUITAR SPEAKER THAT HAS A CRISP MIDS, TIGHT BASS & HANDLES 150 WATT RMS ! |
|
|
|
Item Price: $134.99 Free UPS Ground Shipping in the U.S. |
|
WOOFER
MODEL |
BassLite S2010 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10"
/ 254mm |
|
Impedance |
8
ohms
|
|
RMS
Power Rating |
150
Watts |
|
Frequency
Response |
54Hz
- 4kHz |
| Sensitivity | 96.2dB SPL |
|
Voice Coil Diameter |
2" / 50.8mm |
| Rec. Enclosure Volume (Vented) | .7-1.8 cu.ft. / 20-51 Liters |
|
MOUNTING INFORMATION |
|
|
Overall Diameter |
10.08" / 256mm |
| Bolt Circle Diameter | 9.66" / 245.4mm |
| Baffle Cutout Diameter | 9.05" / 229.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 4.25" / 108mm |
| Magnet Weight | 4 oz. |
| Net Weight | 3.5 lbs./ 1.59 kg. |
| Shipping Weight | 4.6 lbs./ 2.09 kg. |
|
MATERIALS |
|
| Cone | Paper |
| Voice Coil | Copper |
| Magnet | Neodymium |
| Basket | Steel |
| Surround | Cloth |
| Dust Cap | Solid Composition Felt |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 46Hz |
| Impedance (Re) | 5.02 ohms |
| Coil Inductance (Le) | 0.52mH |
| Electromagnetic Q (Qes) | .34 |
| Mechanical Q (Qms) | 4.16 |
| Total Q (Qts) | .31 |
| Compliance Equiv. Vol. (Vas) | 63.4 Liters/2.2cu. ft. |
| Voice Coil Overhang (Xmax | 4.0mm |
| Surface Area of Cone (Sd) | .03501 m2 |
| BL Product (BL) | 11.9 T-M |
| Peak Dia. Displacement Volume(Vd) | 140cc |
|

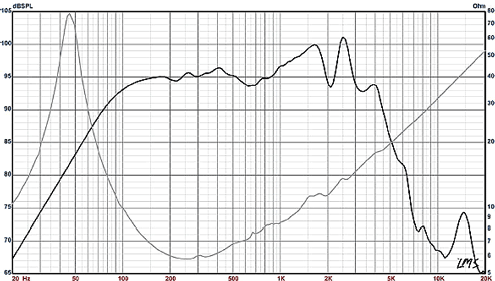

BASSLITE S2010 RESPONSE CURVE |
|
|
|
|
