5W430
|
|
5W430 |
|

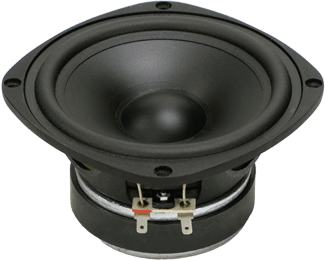

| 5" MID-BASS SPEAKER |
|
WEATHER PROTECTED CONE & 80 WATTS AES W/ A 6.0MM XMAX FOR CLEAN BASS & MIDS! |
|
|
|
Item Price: $79.95 |
|
WOOFER MODEL |
5W430 |
|
Specifications |
|
|
Diameter |
5" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
80 Watts |
| Program Power | 120 Watts |
| Peak Power | 250 Watts |
| Sensitivity (1W/1m) | 89dB SPL |
|
Frequency
Response |
60Hz
- 8.0kHz |
| Voice Coil Diameter |
1.0"
/ 25mm |
| BL Factor | 6.3 TM |
| Max. Peak To Peak Excursion | .63" / 16mm |
| Recommended Enclosure Volume | .28-.71 cu. ft / 8-20Liters |
|
Mounting Information |
|
| Overall Diameter | 5.28"/ 134mm |
| Bolt Circle Diameter | 5.51" / 140mm |
| Number of Bolts | 4 |
| Mounting Hole Diameter | .18 / 4.5mm |
| Baffle Cutout | 4.88" / 124mm |
| Depth | 2.83" / 72mm |
| Flange & Gasket Thickness | .18" / 4.5mm |
| Net Weight | 2.73 lbs. / 1.24 kg. |
| Shipping Weight | 3.97 lbs. / 1.8 kg. |
|
Materials |
|
| Cone | Polypropylene (Weather Protected) |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 52 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | .49mH |
| Mechanical Q (Qms) | 2.77 |
| Electrical Factor(Qes) | .36 |
| Total Q (Qts) | .32 |
| Comp. Equivelant Vol. (Vas) | .53 ft3 / 15 Liters |
| Voice Coil Overhang (Xmax) | 6.0mm |
| Diaphragm Mass (Mms) | 8.2 Grams |
| Surface Area of Cone (Sd)m2 | 0.009m2 |
|
Frequency Response |
|
|
|
|
|

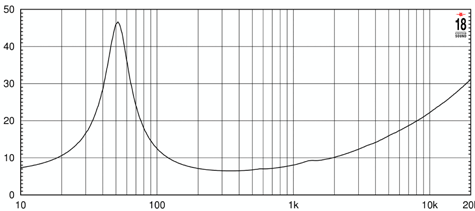

Impedance Curve |
|
|
|
|
