10MB600
|
|
10MB600 |
|
| 10" HIGH POWER WOOFER |
|
WEATHER PROTECTED CONE FOR OUTDOOR USE W/ HIGH POWER HANDLING! |
|
|
|
10MB600 |
|
Item Price: $245.95 |
|
|
WOOFER MODEL |
10MB600 |
|
Specifications |
|
|
Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
450 Watts |
| Program Power | 900 Watts |
|
Sensitivity
(1W/1m) |
98dB SPL |
|
Frequency
Response |
55Hz
- 4.5kHz |
| Recommended Crossover | 2.5kHz |
| Voice Coil Diameter |
2.95"
/ 75mm |
| BL Factor | 18.6 TM |
| Recommended Enclosure Volume | .9-1.41 cu. ft / 10-40 Liters |
| Magnet | Ferrite |
|
Mounting Information |
|
| Overall Diameter | 10.24" / 260mm |
| Bolt Circle Diameter | 9.63" / 244.5mm |
| Baffle Cutout Diameter | 9.13" / 232mm |
| Overall Depth | 5" / 127mm |
| Flange Thickness | .57" / 14.5mm |
| Net Weight | 16.23 lbs. / 7.35 kg. |
| Shipping Weight | 17.44 lbs. / 7.9 kg. |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 58 Hz |
| Impedance (Re) | 5.7 ohms |
| Coil Inductance (Le) | 1.6mH |
| Mechanical Q (Qms) | 5.5 |
| Electrical Factor(Qes) | .23 |
| Total Q (Qts) | .22 |
| Comp. Equivelant Vol. (Vas) | 1.18 ft3 / 33.4 Liters |
| Voice Coil Overhang (Xmax) | 6.5mm |
| Surface Area of Cone (Sd)m2 | 0.035m2 |

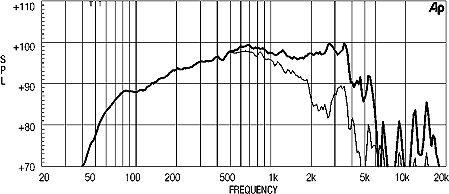

| Frequency response in 30 Liter enclosure tuned to 55Hz | |
 |
|
