CV-75 - 12" GUITAR SPEAKER
|
|
|
CV-75 - 12" GUITAR SPEAKER |
|
THE CV-75 IS A GOOD CHOICE FOR A BRITISH TONE THAT IS NATURAL & PUNCHY SOUNDING WHEN PUSHED! |
|
|
Free UPS Ground Shipping in the U.S. |
CV-75-8 - 8 ohm version
Item Price: $134.99 |
|
CV-75-16 - 16 ohm version
Item Price: $134.99 |
|
| SPEAKER MODEL | CV-75 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
12" / 305mm |
|
Impedance |
8 or 16 ohms |
| RMS Power Rating | 75 Watts |
| Peak Power Rating | 150 Watts |
| Usable Frequency Response | 80Hz - 5.5kHz |
| Voice Coil Diameter | 1.75" / 44mm |
|
Sensitivity (1W/1m) |
102.2dB |
|
Magnet Weight |
56 oz. |
| Shipping Weight | 10.8lbs. / 4.9 kg. |
|
MOUNTING INFORMATION |
|
|
|
12.17" / 309.1mm |
| Bolt Circle Diameter |
11.75 |
| Baffle Cutout Diameter | 11.13" / 282.7mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.24" / 6.1mm |
| Overall Depth | 5.25" / 133.4mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Nomex |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 79Hz |
| Impedance (Re) | 6.89 ohms |
| Coil Inductance (Le) | 0.52mH |
| Electromagnetic Q (Qes) | 0.43 |
| Mechanical Q (Qms) | 15.07 |
| Total Q (Qts) | .42 |
| Compliance Equiv. Vol. (Vas) | 52.45Liters / 1.85 cu. ft. |
| BL Product (BL) | 15 T-M |
| Voice Coil Overhang (Xmax) | 1.23mm |
| Surface Area of Cone (Sd) | .05195m2 |

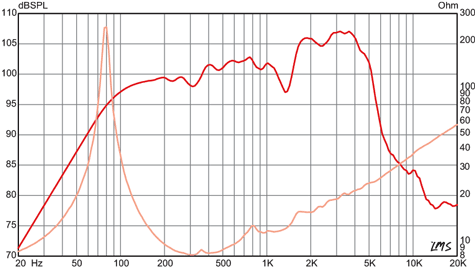

| FREQUENCY RESPONSE | |
|
|
|
