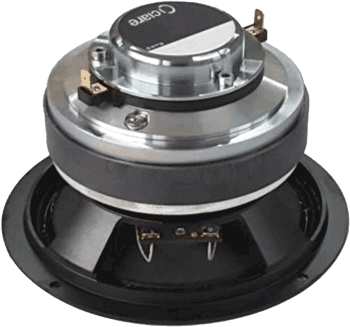

CXi160 - 6.5" COAXIAL SPEAKER
|
|
|
CXi160 - 6.5" COAXIAL SPEAKER |
|
CIARE CXi160 IS A QUALITY SOUNDING 8" COAXIAL SPEAKER W/ AN OVERALL SMOOTH DETAILED SOUND! |
|
|
|
Item Price: $329.95 |
|
SPEAKER MODEL |
CXi160 |
|
SPECIFICATIONS |
|
| Low Frequency Woofer | |
|
Nominal Basket Diameter |
6.5" |
|
Impedance |
4 ohms |
|
AES Power Rating |
220 Watts |
| Program Power | 450 Watts |
|
Frequency Response |
70Hz - 2.5kHz |
|
Sensitivity (1W/1m) |
94dB SPL |
| Resonant Frequency (Fs) | 91Hz |
|
Voice Coil Diameter |
2" / 50.8mm |
|
Low Frequency Materials |
|
| Basket | Cast Aluminum |
| Winding | Copper |
| Former | Glass Fiber |
| Cone | Doped Cellulose Fiber |
| Cone Shape | Exponential |
| Suspension | Nomex |
| Surround | Nomex |
| Magnet | Ferrite |
|
High Frequency Driver |
|
| Throat Diameter | 1" / 25.4mm |
| Impedance | 8 ohms |
|
AES
Power Rating |
150 Watts |
| Frequency Response | 250 Watts |
|
Sensitivity
(1W/1m) |
105dB SPL |
| Frequency Response | 2kHz - 20kHz |
| Voice Coil Diameter | 1.75" / 44.5mm |
|
High Frequency Materials |
|
| Winding | Aluminum |
| Diaphragm | Mylar |
| Magnet | Neodymium |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 6.5" / 165mm |
| Bolt Circle Diameter | 6.08" / 154.5mm |
| Baffle Cutout Diameter | 5.71" / 145mm |
| Depth | 4.25" / 108mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .2" / 5mm |
| Flange Thickness | .1" / 2.5mm |
| Net Weight | 6.39 lbs./ 2.9 kg. |
|
THIELE-SMALL
PARAMETERS |
|
|
Resonant Frequency (fs) |
91 Hz |
|
Impedance
(Re) |
2.8 ohms |
| Electrical Factor(Qes) | .57 |
| Mechanical Q (Qms) | 5.03 |
| Total Q (Qts) | .51 |
| Compliance Equiv. Vol. (Vas) | 7.8 Liters/.28 cu. ft. |
| Voice Coil Overhang (Xmax) | 4.5mm |
| BL Factor | 6.8 T-M |
| Diaphragm Mass (Mms) | 15 grams |
| Surface Area of Cone (Sd)m2 | 0.012m2 |
| Reference Efficiency (%) | .53% |
| Coil Inductance (Le) | .42mH |

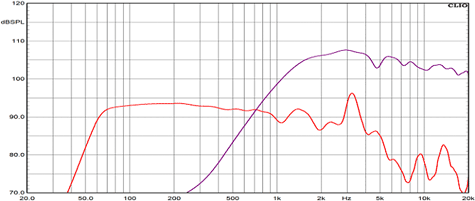

| FREQUENCY RESPONSE GRAPH | |
 |
|
| IMPEDANCE GRAPH | |
 |
|
