NDH18-4S - 18" LIGHTWEIGHT SUBWOOFER SPEAKER

THE CIARE NDH18-4S HAS A LIGHTWEIGHT 18" SUBWOOFER SPEAKER HAS A HIGH 11.5MM XMAX FOR A VERY STRONG BASS!

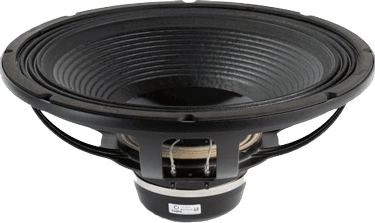

Ciare NDH18-4S

8 OHMS

Item Price: $459.95

SPEAKER MODEL

NDH18-4S

SPECIFICATIONS

Nominal Basket Diameter

18" / 450mm

Impedance

8 ohms

AES Power Rating

1,000 Watts

Program Power 2,000 Watts

Frequency Response

30Hz - 200Hz

Sensitivity (1W/1m)

96.5dB SPL

Voice Coil Diameter

4" / 100mm

Voice Coil Length 1.18" / 30mm

MOUNTING INFORMATION

Overall Diameter 18.1" / 460mm
Bolt Circle Diameter 17.32" / 440mm
Baffle Cutout Diameter 16.38" / 416mm
Depth 8.15" / 207mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 19.8 lbs./ 9 kg.

MATERIALS

Basket Die-Cast Aluminum
Cone Treated Cellulose
Cone Shape Straight
Suspension Material Nomex Fabric
Surround Shape Three Rolls
Voice Coil Copper
Voice Coil Former Fiberglass
Connection Type Faston
Magnet Neodymium

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

31 Hz
Impedance (Re) 6.1 ohms
Coil Inductance (Le) 1.9mH
Electrical Factor (Qes) .33
Mechanical Q (Qms) 9.8
Total Q (Qts) .32
Compliance Equiv. Vol. (Vas) 239 Liters/8.44 cu. ft.
Voice Coil Overhang (Xmax) 11.5mm
BL Factor 27.7 T-M
Diaphragm Mass (Mms) 212 Grams
Surface Area of Cone (Sd)m2 0.1164m2
Reference Efficiency 2.1%

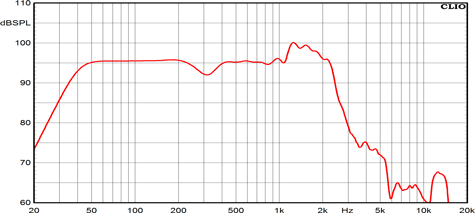

Frequency Response
Ciare NDH18-4S Frequency

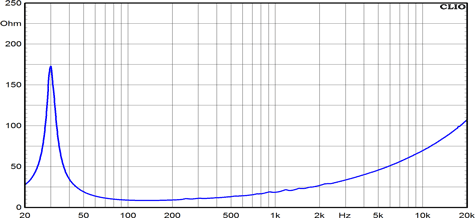

Impedance Curve
Ciare NDH18-4S Impedance
SPL FREQUENCY RESPONSE GRAPH & CABINET SIZES

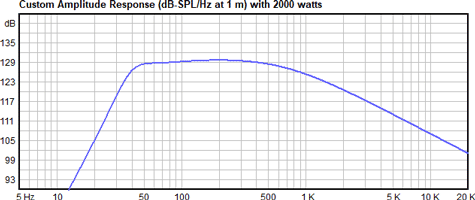

Ciare NDH18-4S SPL Graph SINGLE CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 1 x 18"

  • Internal Cabinet Volume - 6.5 cu. ft.

  • Tuning - 40.5Hz

  • Frequency @ -3dB - 38.94Hz

  • Port - (4) 4" Round Ports

  • Port Depth - 9" Deep

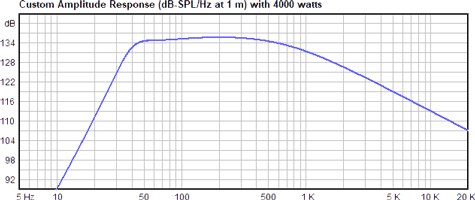

Ciare NDH18-4S SPL Graph DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 18"

  • Internal Cabinet Volume - 13.0 cu. ft.

  • Tuning - 40.5Hz

  • Frequency @ -3dB - 38.91Hz

  • Port - (8) 4" Round Ports

  • Port Depth - 7.75" Deep

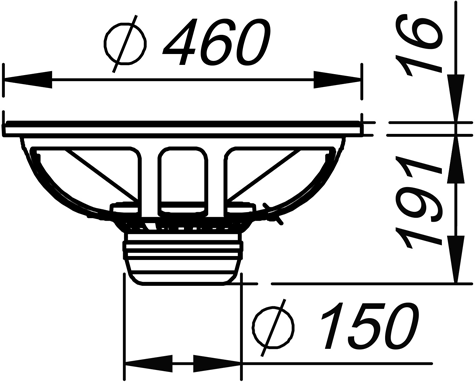

Drawing
Ciare NDH18-4S Drawing
