18.00SW-8 - 18" EXTENDED LOW FREQUENCY SUBWOOFER

CIARE 18.00SW-8 HAS A VERY HIGH XMAX OF 14.0MM FOR A CLEAN DEEP BASS DOWN TO 20HZ THAT IS AWESOME!

Ciare 18.00SW-8Ciare 18.00SW-8

8 ohm Version

Item Price: $459.95

SPEAKER MODEL

18.00SW-8

SPEAKER CABINET DESIGNS BELOW

SPECIFICATIONS

Nominal Basket Diameter

18" / 460mm

Impedance

8 ohms

AES Power Rating

1,000 Watts

Program Power 2,000 Watts

Frequency Response

20Hz - 1kHz

Sensitivity (1W/1m)

94dB

Voice Coil Diameter

4" / 100mm

Winding Material Copper
Former Material Fiber Glass
Winding Depth 1.26" / 32mm
Magnetic Gap Depth .4" / 10mm

MOUNTING INFORMATION

Overall Diameter 18.1" / 460mm
Bolt Circle Diameter 17.32" / 440mm
Baffle Cutout Diameter 16.38" / 416mm
Depth 8.27" / 210mm
Flange Thickness 1.06" / 27mm
Magnet Width 8.66" / 220mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7.0mm
Net Weight 34.58 lbs./ 15.7 kg.

MATERIALS

Basket Die-Cast Aluminum
Cone Treated Cellulose
Surround Rubber
Surround Shape Half Roll
Suspension Material Doped Nomex Fabric
Voice Coil Copper
Spider Double Nomex
Former Kapton
Connector Type Push Button
Magnet Ferrite

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

36Hz
Impedance (Re) 7 ohms
Electrical Factor(Qes) .55
Mechanical Q (Qms) 6.7
Total Q (Qts) .5
Compliance Equiv. Vol. (Vas) 93 Liters/3.28cu. ft.
Voice Coil Overhang (Xmax) 14.0mm
BL Factor 32.5 T-M
Diaphragm Mass (Mms) 377 Grams
Surface Area of Cone (Sd)m2 0.1134m2
Reference Efficiency .73%
Coil Inductance (Le) 3.0mH

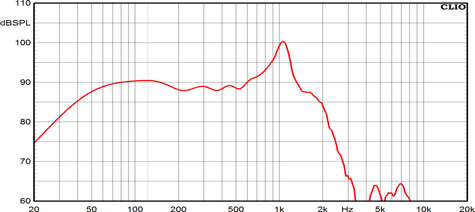

FREQUENCY RESPONSE GRAPH
Ciare 18.00SW-8 Frequency

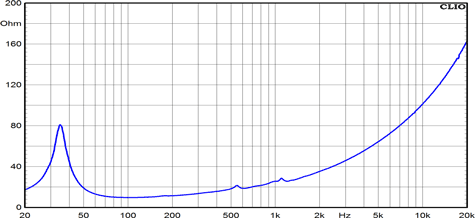

IMPEDANCE CURVE
Ciare 18.00SW-8 Impedance

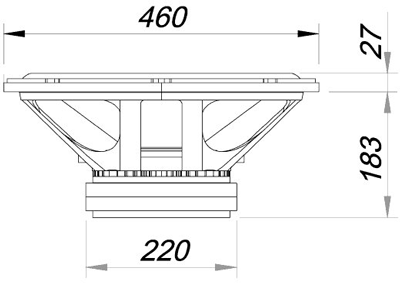

MOUNTING DIMENSIONS
Ciare 18.00SW-8 Mounting

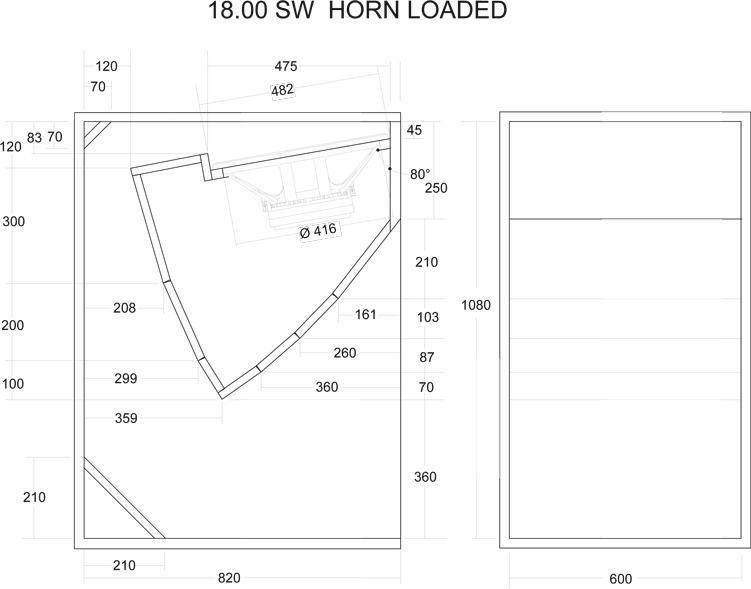

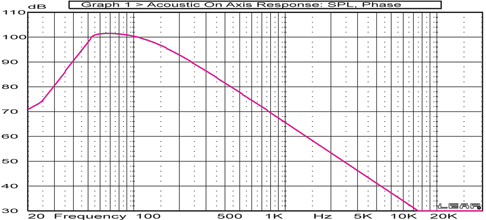

HORN LOADED CABINET DRAWING & RESPONSE
Ciare 18.00SW Horn

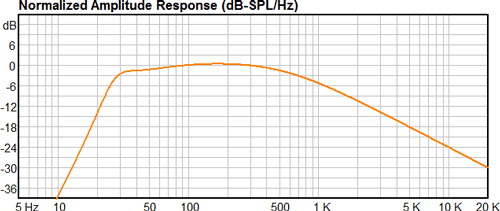

BASS REFLEX(PORTED) SINGLE CABINET SIZE & FREQUENCY RESPONSE
Ciare 18.00SW SINGLE CABINET SPECS
  • Enclosure Type - Single Bass Reflex/Ported - 1 x 18"

  • Internal Cabinet Volume - 7.55 cu. ft.

  • Internal Cabinet Dimensions: 22.5" Wide x 28.5" Height x 20.875" Deep

  • Tuning - 29Hz

  • Frequency @ -3dB - 28.47Hz

  • Slot Port - 22" Wide x 2" Height

  • Slot Port Depth - 16.625" Deep

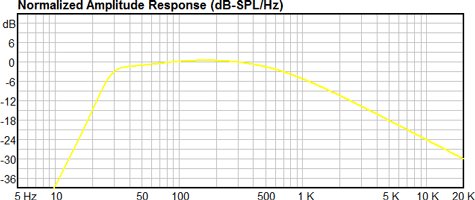

BASS REFLEX(PORTED) DUAL CABINET SIZE & FREQUENCY RESPONSE
Ciare 18.00SW

DUAL CABINET SPECS

DUAL CABINET SPECS
  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 18"

  • Internal Cabinet Volume - 15.55 cu. ft.

  • Internal Cabinet Dimensions: 46" Wide x 28.5" Height x 20.5" Deep

  • Tuning - 30Hz

  • Frequency @ -3dB - 29.62Hz

  • Slot Port - 46" Wide x 2" Height

  • Slot Port Depth - 15.125" Deep

FOR MORE CABINET SIZE OPTIONS & PORTING HELP PLEASE CALL 1-877-732-5374 OR 1-732-308-4670
