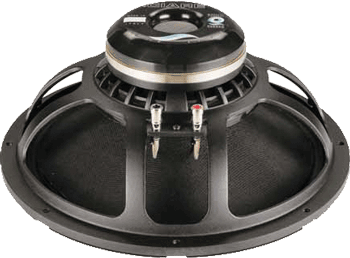

15NDH-4 - 15" LIGHTWEIGHT NEODYMIUM MIDRANGE / MID-BASS SPEAKER

THE CIARE 15NDH-4 IS A VERY HIGH QUALITY 15" SPEAKER THAT HAS LOUD SMOOTH MIDRANGE & MID-BASS WITH A DETAILED TIGHT SOUND!

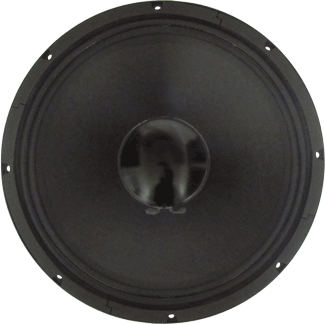

Ciare NDH15-4

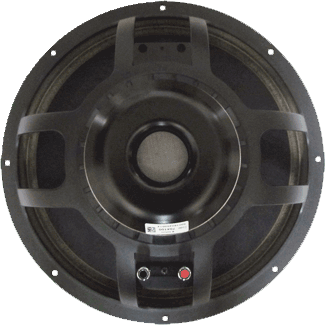

Ciare NDH15-4

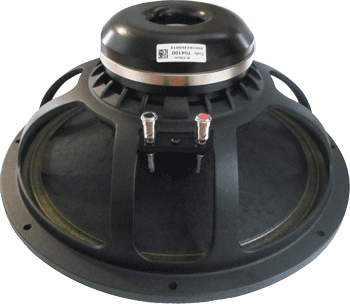

Ciare NDH15-4

Item Price: $399.95 Temporarily Backordered

Recone Kit - 15NDH-4-RK Item Price: $129.95
SPEAKER CABINET DESIGNS BELOW

SPEAKER MODEL

15NDH-4

SPECIFICATIONS

Nominal Basket Diameter

15" / 380mm

Impedance

8 ohms

AES Power Rating

800 Watts
Program Power 1,500 Watts

Frequency Response

40Hz - 2kHz

Sensitivity (1W/1m)

99dB SPL

Voice Coil Diameter

4" / 100mm

MOUNTING INFORMATION
Overall Diameter 15.28" / 388mm
Bolt Circle Diameter 14.57" / 370mm
Baffle Cutout Diameter 13.94" / 354mm
Depth 6.89" / 175mm
No. Of Mounting Holes 8
Mounting Hole Diameter .28" / 7mm
Net Weight 13.2 lbs./ 6 kg.

MATERIALS
Basket Cast Aluminum
Cone Doped Paper
Surround Doped Nomex Fabric
Surround Shape Two Rolls
Voice Coil Aluminum
Former Kapton
Magnet Neodymium

  THIELE-SMALL PARAMETERS

Resonant Frequency (fs)

 48.6 Hz
Impedance (Re) 6.06 ohms
Electrical Factor(Qes) .31
Mechanical Q (Qms) 11.81
Total Q (Qts) .31
Compliance Equiv. Vol. (Vas) 96.87 Liters/3.42 cu. ft.
Voice Coil Overhang (Xmax) 8.0mm
BL Factor 25.09 T-M
Diaphragm Mass (Mms) .107 kg.
Surface Area of Cone (Sd)m2 0.083m2
Reference Efficiency 3.41%
Coil Inductance (Le) .71mH
80 Liter Cabinet: Pink Noise, 20Hz to 20kHz, 12dB/octave, 2 Hour Duration

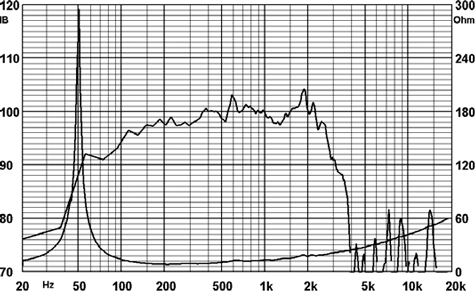

Ciare NDH15-4 Frequency

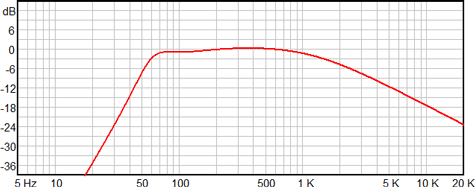

FREQUENCY RESPONSE IN 3.25 CU. FT. PORTED CABINET
Ciare NDH15-4 Frequency SINGLE CABINET SPECS

  • Enclosure Type - Single Bass Reflex/Ported - 1 x 15"

  • Internal Cabinet Volume - 3.25 cu. ft.

  • Internal Cabinet Dimensions: 17.5" Wide x 24" Height x 13.375" Deep

  • Tuning - 60Hz

  • Frequency @ -3dB - 58.99Hz

  • Rectangle Slot Port - 17.5" Wide x 2.5" Height

  • Slot Port Depth - 7" Deep

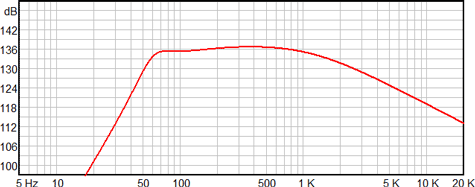

FREQUENCY RESPONSE IN 6.54 CU. FT. PORTED CABINET
Ciare NDH15-4 Frequency DUAL CABINET SPECS

  • Enclosure Type - Dual Bass Reflex/Ported - 2 x 15"

  • Internal Cabinet Volume - 6.54 cu. ft.

  • Internal Cabinet Dimensions: 17.5" Wide x 40" Height x 16.125" Deep

  • Tuning - 60Hz

  • Frequency @ -3dB - 59.01Hz

  • Rectangle Slot Port - 17.5" Wide x 4" Height

  • Slot Port Depth - 2.25" Deep
