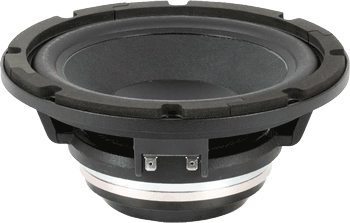

BEYMA PRO8Q300ND-4 - 8" NEO MID-BASS/BASS SPEAKER
|
|
|
BEYMA PRO8Q300ND-4 - 8" NEO MID-BASS/BASS SPEAKER |
|
THE BEYMA PRO8Q300ND HAS A TIGHT SMOOTH BASS WITH NICE EXTNEDED MIDS THAT SOUND VERY NATURAL! |
|
|
4 Ohms |
BEYMA PRO8Q300ND |
|
Item Price: $398.00 |
|
|
WOOFER MODEL - PRO8Q300ND |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
4 ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
70Hz
- 7.0kHz |
|
Sensitivity
(1W/1m) |
94dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Voice Coil Length | 14.5 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 23 mm |
| BL Factor | 10.3 N/A |
|
Mounting Information |
|
|
Overall Diameter |
8.33" / 211.5mm |
| Bolt Circle Diameter |
7.8"
/ 198mm |
| Baffle Cutout Diameter | 7.1" / 181mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
3.8"
/ 96mm |
|
Net
Weight |
5.1 lb. / 2.3 kg. |
| Shipping Weight | 5.5 lb. / 2.5 kg. |
|
Materials |
|
| Basket | Die-Cast Aluminum |
| Cone | Carbon Fiber / Paper |
| Spider | Conex |
| Surround | Santoprene |
| Voice Coil | Aluminum Wire |
| Former | Fiber Glass |
| Metal Parts | Anti-Corrosion |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 65 Hz |
| Impedance (Re) | 3.4 ohms |
| Coil Inductance (Le) | .2 mH |
| Mechanical Q (Qms) | 17.8 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .33 |
| Comp. Equivelant Vol. (Vas) | .88 ft3 / 16 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Moving Mass (Mms) | 26 Grams |
| Surface Area of Cone (Sd) | 0.0220m2 |
| Reference Efficiency | 1.2% |
| Displacement Volume (Vd) | 132 cm3 |
|

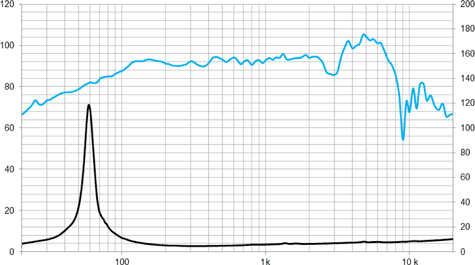

Frequency Response & Impedance Graph |
|
|
|
|
|

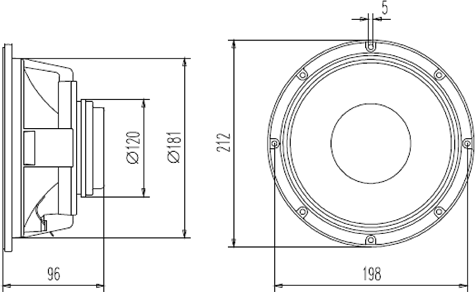

Mounting Dimensions |
|
|
|
|
