BEYMA PRO12MV2ND - LIGHTWEIGHT 12" MID-BASS SPEAKER
|
|
|
BEYMA PRO12MV2ND - LIGHTWEIGHT 12" MID-BASS SPEAKER |
|
THE BEYMA PRO12MV2ND IS A NICE 12 INCH SPEAKER HAS CLEAN LOUD MID-BASS! |
|
|
|
BEYMA PRO12MV2ND |
|
Item Price: $389.95 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350 Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
55Hz
- 6.0kHz |
|
Sensitivity
(1W/1m) |
99dB |
|
Voice
Coil Diameter |
2.5" /
63.5mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 26 mm |
| BL Factor | 15.7 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.2" / 310mm |
| Bolt Circle Diameter | 11.5" / 292mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 11" / 280mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
4.9" / 125mm |
|
Net
Weight |
6.61 lb. / 3 kg. |
| Shipping Weight | 8.1 lb. / 3.7 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.0 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 4.1 |
| Electrical Factor (Qes) | .32 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 3.07 ft3 / 87 Liters |
| Voice Coil Overhang (Xmax) | 6 mm |
| Moving Mass (Mms) | 50 Grams |
| Surface Area of Cone (Sd)m2 | 0.055m2 |
| Reference Efficiency | 3.2% |
| Displacement Volume (Vd) | 330 cm3 |
|

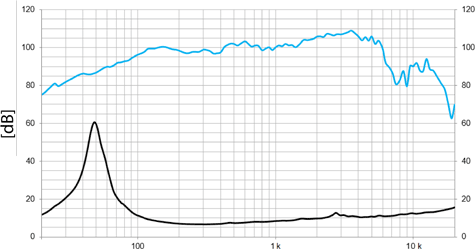

Frequency Response & Impedance Curve |
|
|
|
|
