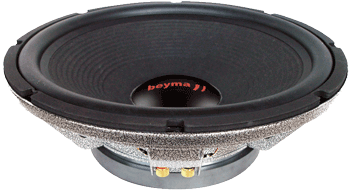

BEYMA POWER 15N - 15" 4 OHM SPEAKER
|
|
|
BEYMA POWER 15N - 15" 4 OHM SPEAKER |
|
THE BEYMA POWER 15N IS A 4 OHM 15" SPEAKER THAT HAS NICE DEEP BASS AND SOLID LOW MIDS! |
|
|
|
Item Price: $349.95 |
|
WOOFER MODEL |
POWER 15N |
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
600
Watts |
| Program Power |
1,200
Watts |
|
Frequency
Response |
30Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume (Ported) | 2.12-5.3 ft3 / 60-150 Liters |
| Recom. Enclosure Volume (Sealed) | 2.0 ft3 / 60 Liters |
| BL Factor | 17.5 N/A |
| Magnetic Assembly Weight | 19.8 lb. / 9 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
|
Bolt
Circle Diameter |
14.57"
/ 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 14.25" / 362mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7.0 Liters |
|
Overall
Depth |
5.71"
/ 145mm |
|
Net
Weight |
22.88 lb. / 10.4 kg. |
| Shipping Weight | 25.3 lb. / 11.5 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 30 Hz |
| Impedance (Re) | 4.4ohms |
| Coil Inductance (Le) | 1.8 mH |
| Mechanical Q (Qms) | 6.13 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .35 |
| Comp. Equivelant Vol. (Vas) | 8.47 ft3 / 240 Liters |
| Voice Coil Overhang (Xmax) | 9.0 mm |
| Moving Mass (Mms) | 134 Grams |
| Surface Area of Cone (Sd)m2 | 0.091 |
| Reference Efficiency | 1.8% |
| Displacement Volume (Vd) | 820 cm3 |

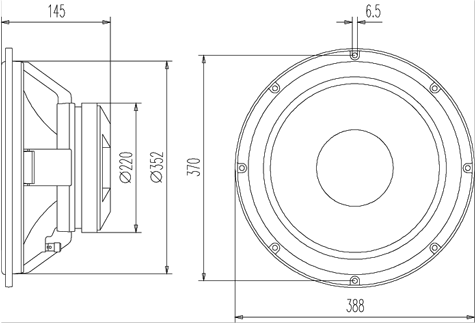

| Mounting Dimensions | |
 |
|
|

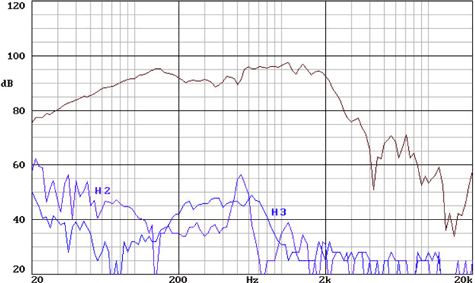

Frequency Response & Distortion Curves |
|
 |
|
