BEYMA LIBERTY-8 - 12" GUITAR SPEAKER
|
|
|
BEYMA LIBERTY-8 - 12" GUITAR SPEAKER |
|
DELIVERS THE SAME SOUND AS THE JBL E-120 12" GUITAR SPEAKER! |
|
|
Replacement For The JBL E-120 |
Item Price: $319.95 |
|
WOOFER MODEL |
LIBERTY-8 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
150
Watts |
|
Program
Power Rating |
300
Watts |
|
Frequency
Response |
50Hz - 6.0kHz |
|
Sensitivity
(1W/1m) |
102dB |
|
Voice
Coil Diameter |
4" / 101.6mm |
| Voice Coil Length | 8.5 mm |
| Air Gap Height | 10 mm |
| BL Factor | 21 N/A |
| Magnetic Assembly Weight | 18.92 lb. / 8.6 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.28" / 312mm |
|
Bolt
Circle Diameter |
11.61"
/ 295mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.18" / 284mm |
| - Rear Mount | 11.18" / 284mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.19 ft3 / 5.5 Liters |
|
Overall
Depth |
4.88"
/ 124mm |
|
Net
Weight |
22 lb. / 10 kg. |
| Shipping Weight | 24.2 lb. / 11 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 47 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | .73 mH |
| Mechanical Q (Qms) | 6.5 |
| Electrical Factor (Qes) | .29 |
| Total Q (Qts) | .28 |
| Comp. Equivelant Vol. (Vas) | 2.62 ft3 / 74 Liters |
| Voice Coil Overhang (Xmax) | 2.1 mm |
| Moving Mass (Mms) | 57 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 3.8% |
| Displacement Volume (Vd) | 116 cm3 |
|

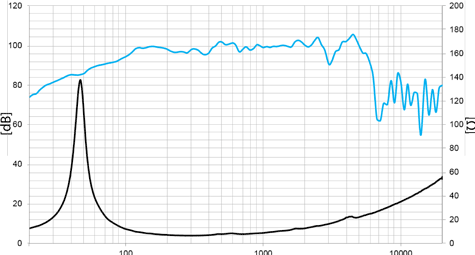

Frequency Response & Impedance Curve |
|
 |
|

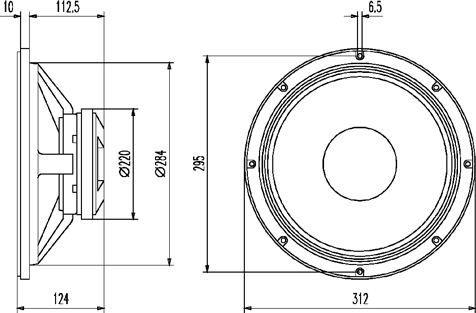

| Mounting Dimensions | |
 |
|
