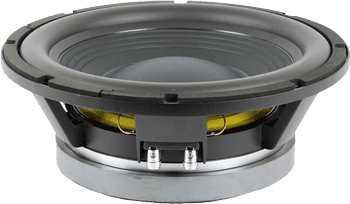

BEYMA POWER 12N - 12" BASS / MID-BASS SPEAKER
|
|
|
BEYMA POWER 12N - 12" BASS / MID-BASS SPEAKER |
|
THE BEYMA POWER 12N HAS A 10.0MM XMAX W/ 500 WATTS AES POWER HANDLING! |
|
|
|
Item Price: $389.95 |
|
SEE BOX DESIGNS BELOW |
|
|
WOOFER MODEL |
POWER 12N |
|
Specifications |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power |
1,000
Watts |
|
Frequency
Response |
45Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
93dB |
|
Voice
Coil Diameter |
4" / 100mm |
| Voice Coil Length | 25 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 42 mm |
| BL Factor | 20.1 N/A |
|
Mounting Information |
|
|
Overall Diameter |
12.3" / 312mm |
|
Bolt
Circle Diameter |
11.7"
/ 298mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11" / 280mm |
| No. Of Mounting Holes | 8 |
|
Overall
Depth |
5"
/ 127mm |
|
Net
Weight |
21.4 lb. / 9.7 kg. |
| Shipping Weight | 22.9 lb. / 10.4 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Rubber |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 3.5 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 4.6 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .34 |
| Comp. Equivelant Vol. (Vas) | 1.17 ft3 / 33 Liters |
| Voice Coil Overhang (Xmax) | 10.0 mm |
| Moving Mass (Mms) | 141 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 1.0% |
| Displacement Volume (Vd) | 550 cm3 |

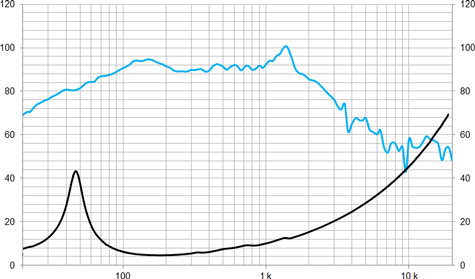

| Frequency Response & Distortion Curves | |
 |
|
|

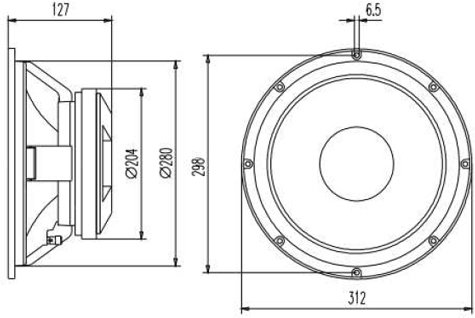

Mounting Dimensions |
|
 |
|
| Vented Box Size Suggestions | |
| Box Volume | 2.0 cu. ft. |
| Tuning | 48Hz |
| Number of Ports | 1 |
| Slot Port Size | 1.5" H X 14" W |
| Port Length | 11.5" |
