BEYMA CP-750ND-16 - 2" PRO HIGH FREQ. DRIVER
|
|
|
BEYMA CP-750ND-16 - 2" PRO HIGH FREQ. DRIVER |
|
THE BEYMA CP-750ND-16 HAS A MYLAR SURROUND HELPS TO DELIVER A VERY SMOOTH CLEAN SOUND! |
|
|
|
BEYMA CP-750ND-16 |
|
16 Ohms
Item Price: $441.95 New Low Price |
|
|
H.F. DRIVER MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
16
ohms |
| D.C. Resistance | 11 ohms |
| AES Power Rating | 60 Watts @ 800Hz |
| AES Power Rating | 80 Watts @ 1.5kHz |
| Program Power | 120 Watts @ 800Hz |
| Program Power | 160 Watts @ 800Hz |
|
Sensitivity
(1W/1m) |
112dB 1w@1m w/TD-400 horn |
|
Frequency
Response |
600Hz
- 20kHz |
| Recommended Crossover | 800 Hz or > @ 12dB/octave |
| Voice Coil Diameter |
2.87" / 72.2mm |
| Magnetic Assembly Weight | 6.82 lb. / 3.1 kg. |
| Flux Density | 2.2T |
| BL Factor | 11.5 N/A |
| Exit Angle | 24° |
|
Mounting Information |
|
|
Overall Diameter |
5.7" / 145mm |
| Overall Depth |
3.5"
/ 89mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 7.7 lb. / 3.5 kg. |
| Shipping Weight | 8.25 lb. / 3.75 kg. |
|
Materials |
|
| Diaphragm | Pure Titanium |
| Surround | Mylar |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|

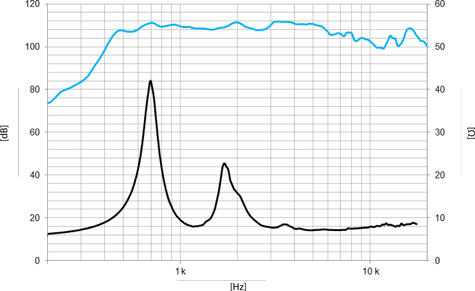

FREQUENCY RESPONSE & IMPEDANCE CURVE W/ TD-460/N |
|
|
|
|
|

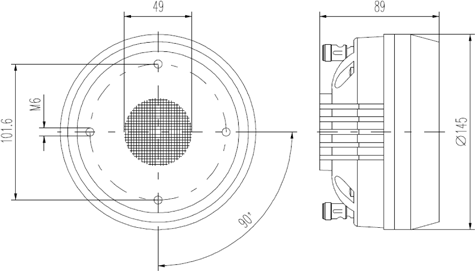

MOUNTING INFORMATION |
|
|
|
|
