BEYMA CD-2514Fe/Ti - 1.4" HIGH FREQUENCY DRIVER
|
|
|
BEYMA CD-2514Fe/Ti - 1.4" HIGH FREQUENCY DRIVER |
|
THIS BEYMA CD-2514Fe/Ti 1.4" HF DRIVER DELIVERS A SMOOTH AGGRESSIVE MIDRANGE WITH NICE HIGH FREQUENCIES! |
|
|
|
BEYMA CD-2514Fe/Ti |
|
Item Price: $180.75 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
1.4" |
|
Impedance |
8
ohms |
|
|
6.5 ohms |
| D.C. Resistance (Re) | 4.4 ohms |
| AES Power Rating | 80 Watts @ 800Hz |
|
AES
Power Rating |
100 Watts @ 1.2kHz |
| Program Power Rating | 160 Watts above 800Hz |
| Program Power Rating | 200 Watts above 1.2kHz |
|
Sensitivity
(1W/1m) |
108dB 1w @ 1m w/ TD-385 horn |
|
Frequency
Response |
600Hz
- 20kHz |
| Recommended Crossover | 800Hz or higher, 12dB/octave |
| Voice Coil Diameter |
2.5" /
63.5mm |
| Flux Density | 1.6T |
| BL Factor | 6.3 T-M |
| Exit Angle | 18.12° |
|
Mounting Information |
|
| Overall Diameter |
5.7" / 145mm |
|
Overall
Depth |
2.47" / 62.7mm |
| Mounting | (4) M6 threaded holes 90° apart on 4" diameter circle |
| Net Weight | 7.7 lb. / 3.5kg. |
| Shipping Weight | 8.1 lb. / 3.7 kg. |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Copper Clad Aluminum |
| Voice Coil Former | Nomex |
| Surround | Titanium |
| Shorting Ring | Copper |
| Magnet | Ferrite |

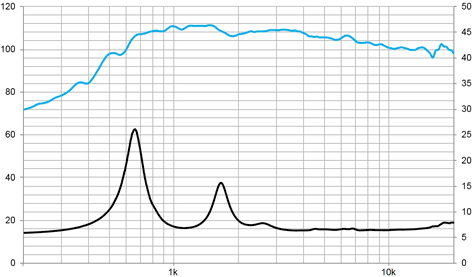

| FREQUENCY RESPONSE & IMPEDANCE CURVE | |
 |
|

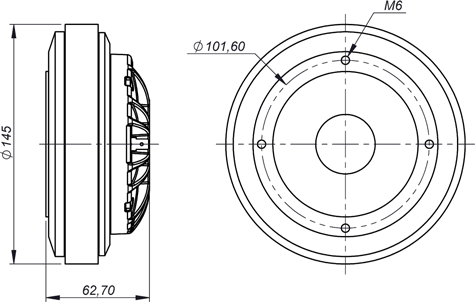

| MOUNTING DIMENSIONS | |
 |
|
