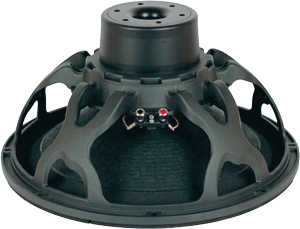

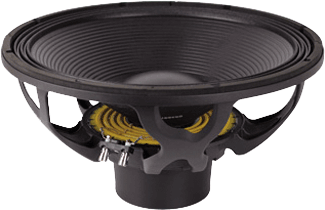

BEYMA 18LEX1600ND - 18" EXTREME HIGH POWER WOOFER
|
|
|
BEYMA 18LEX1600ND - 18" EXTREME HIGH POWER WOOFER |
|
THE BEYMA 18LEX1600ND HAS AN EXTREME HIGH POWER OF 3,200 WATTS PROGRAM W/ A 14.5MM XMAX! |
|
|
|
BEYMA 18LEX1600ND |
|
4 Ohm Version
Item Price: $626.95 |
|
|
8 Ohm Version
Item Price: $626.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
18" |
|
Impedance |
4
or 8
ohms |
|
AES
Power Rating |
1,600
Watts |
| Program Power |
3,200
Watts |
|
Frequency
Response |
35Hz
- 1.0kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
| Voice Coil Length | 35 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 65 mm |
| BL Factor | 24.5 N/A |
|
Mounting Information |
|
|
Overall Diameter |
18.19" / 462mm |
| Bolt Circle Diameter | 17.36" / 441mm |
| Baffle Cutout Diameter- | |
| - Rear Mount | 16.77" / 426mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 9.29" / 236mm |
|
Net
Weight |
20.9 lb. / 9.5 kg. |
|
Shipping
Weight |
23.8 lb. / 10.8 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 33 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 1.9 mH |
| Mechanical Q (Qms) | 11.4 |
| Electrical Factor (Qes) | .45 |
| Total Q (Qts) | .43 |
| Comp. Equivelant Vol. (Vas) | 8.16 ft3 / 231 Liters |
| Voice Coil Overhang (Xmax) | 14.5 mm |
| Moving Mass (Mms) | 229 Grams |
| Surface Area of Cone (Sd)m2 | 0.1255m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 1820 cm3 |

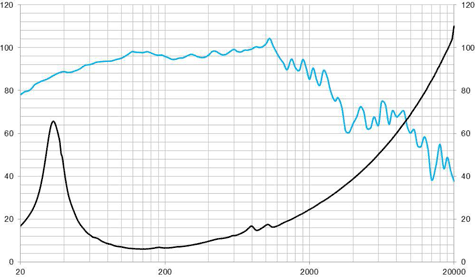

| Frequency Response & Free Air Impedance Curve | |
 |
|

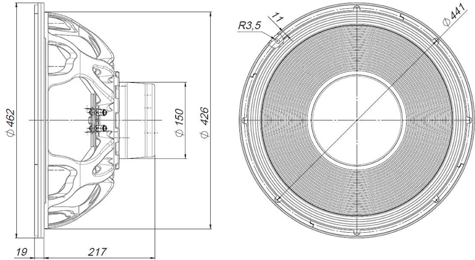

| Mounting Dimensions | |
 |
|
