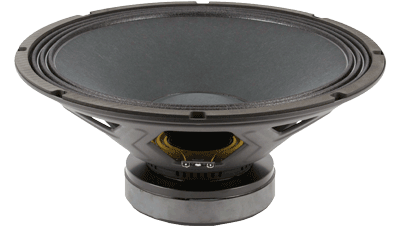

BEYMA 15MCS500 - 15" MID-BASS SPEAKER
|
|
|
BEYMA 15MCS500 - 15" MID-BASS SPEAKER |
|
THE BEYMA 15MCS500 HAS STRONG TIGHT BASS & LOUD CLEAN MIDS & 500 WATTS AES POWER HANDLING! |
|
|
|
NEW BEYMA 15MCS500 |
|
Item Price: $187.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500
Watts |
| Program Power |
1,000
Watts |
|
Frequency
Response |
50Hz
- 4.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
2.5"
/ 63.5mm |
| Recom. Enclosure Volume | 2.1-5.25 ft3 / 60-150 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 9.5 mm |
| X Damage (peak to peak) | 40 mm |
|
Mounting Information |
|
|
Overall Diameter |
15.2" / 385mm |
|
Bolt
Circle Diameter |
14.45"
/ 367mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.9" / 353mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
|
Overall
Depth |
6.77" / 172mm |
| Net Weight | 13.7 lb. / 6.2 kg. |
| Shipping Weight | 15.9 lb. / 7.2 kg. |
|
Materials |
|
| Basket | Steel |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Spider | Conex |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 46 Hz |
|
Impedance
(Re) |
5.6 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 7.8 |
| Electrical Factor(Qes) | .51 |
| Total Q (Qts) | .48 |
| Comp. Equivalent Vol. (Vas) | 4.73 ft3 / 134 Liters |
| Voice Coil Overhang (Xmax) | 8.0mm |
| Diaphragm Mass (Mms) | 98 Grams |
| Effective Surface Area (Sd) | .088 m2 |
| Reference Efficiency | 2.5% |
| BL Factor | 17.6 |
| Displacement Volume | 704 cm3 |
|

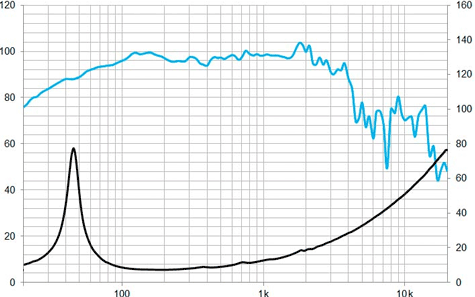

Low Frequency Response & Impedance Graph |
|
 |
|

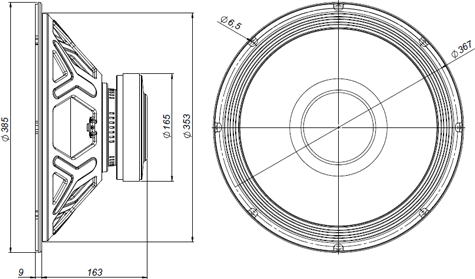

| Mounting Dimensions | |
 |
|
