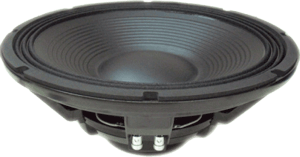

BEYMA 15SW1300ND - 15" EXTREME HIGH POWER WOOFER
|
|
|
BEYMA 15SW1300ND - 15" EXTREME HIGH POWER WOOFER |
|
EXTREME POWER OF 2,600 WATTS PROGRAM & A HIGH 10.0MM XMAX FOR A STRONG BASS SOUND! |
|
|
|
BEYMA 15SW1300ND |
|
Item Price: $575.99 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,300
Watts |
| Program Power |
2,600
Watts |
|
Frequency
Response |
25Hz
- 1.8kHz |
| Maximum Crossover Frequency | 200Hz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 100mm |
| Recom. Enclosure Volume | 1.4-5.3 ft3 / 40-150 Liters |
| Voice Coil Length | 25 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 60 mm |
| BL Factor | 25.1 N/A |
| Magnetic Assembly Weight | 13.2 lb. / 6.0 kg. |
|
Mounting Information |
|
|
Overall Diameter |
15.28" / 388mm |
| Bolt Circle Diameter | 14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.78" / 350mm |
| - Rear Mount | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
| Overall Depth | 6.1" / 155mm |
|
Net
Weight |
16.94 lb. / 7.7 kg. |
| Shipping Weight | 19.14 lb. / 8.7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Spider | Conex |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 44 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | 3.45 mH |
| Mechanical Q (Qms) | 14.7 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .36 |
| Comp. Equivalent Vol. (Vas) | 3.16 ft3 / 89.6 Liters |
| Voice Coil Overhang (Xmax) | 10.0 mm |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 1.99% |
| Displacement Volume (Vd) | 836 cm3 |

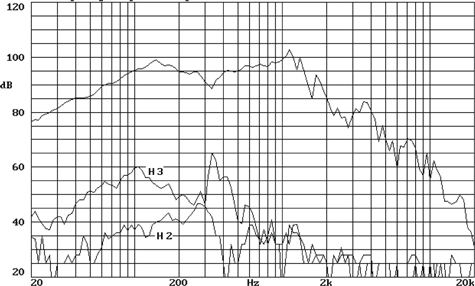

| Frequency Response & Distortion Curves | |
 |
|

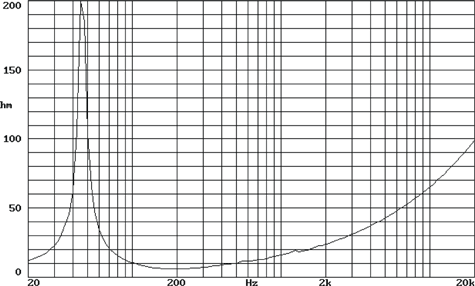

| Free Air Impedance Curve | |
 |
|

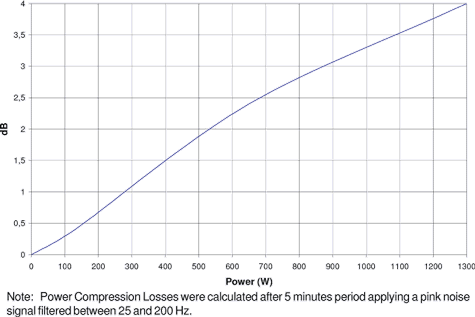

| Power Compression Loss | |
 |
|

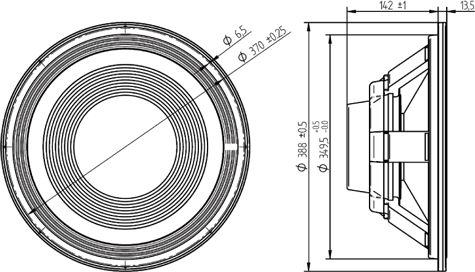

| Drawing | |
 |
|
