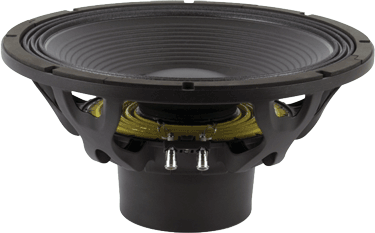

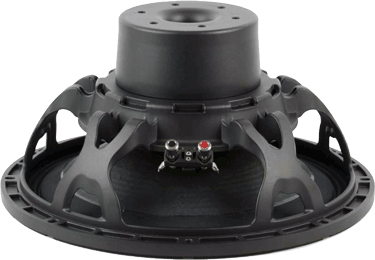

BEYMA 15LEX1600ND - 15" EXTREME HIGH POWER WOOFER
|
|
|
BEYMA 15LEX1600ND - 15" EXTREME HIGH POWER WOOFER |
|
THE BEYMA 15LEX1600ND HAS AN EXTREME HIGH POWER OF 3,200 WATTS PROGRAM W/ A 14.5MM XMAX! |
|
|
|
BEYMA 15LEX1600ND |
|
4 Ohm Version
Item Price: $589.95 |
|
|
8 Ohm Version
Item Price: $589.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
4
or 8
ohms |
|
AES
Power Rating |
1,600
Watts |
| Program Power |
3,200
Watts |
|
Frequency
Response |
40Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
4"
/ 101.6mm |
| Voice Coil Length | 35 mm |
| Air Gap Height | 14 mm |
| X Damage (peak to peak) | 65 mm |
| BL Factor | 25.7 N/A |
|
Mounting Information |
|
|
Overall Diameter |
15.3" / 393mm |
| Bolt Circle Diameter | 14.7" / 373mm |
| Baffle Cutout Diameter- | |
| - Rear Mount | 13.9" / 352mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.6" / 192mm |
|
Net
Weight |
19.4 lb. / 8.8 kg. |
|
Shipping
Weight |
21.6 lb. / 9.8 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 41 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 1.6 mH |
| Mechanical Q (Qms) | 6.6 |
| Electrical Factor (Qes) | .38 |
| Total Q (Qts) | .36 |
| Comp. Equivelant Vol. (Vas) | 3.21 ft3 / 91 Liters |
| Voice Coil Overhang (Xmax) | 14.5 mm |
| Moving Mass (Mms) | 175 Grams |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 1276 cm3 |

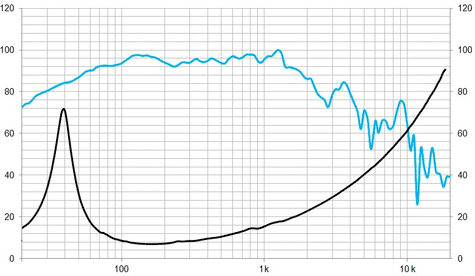

| Frequency Response & Free Air Impedance Curve | |
 |
|

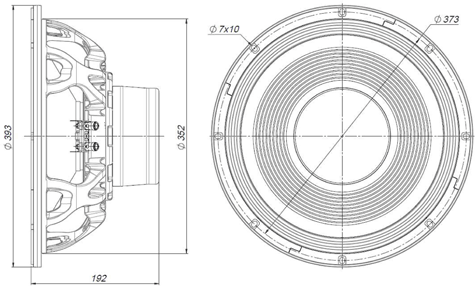

| Mounting Dimensions | |
 |
|
