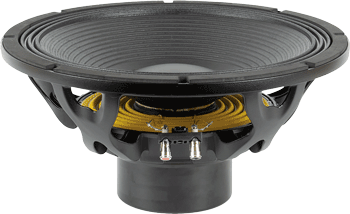

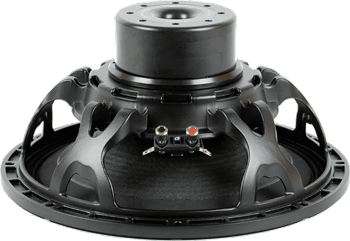

BEYMA 15LEX1000ND - LIGHTWEIGHT 15" HIGH POWER WOOFER
|
|
|
BEYMA 15LEX1000ND - LIGHTWEIGHT 15" HIGH POWER WOOFER |
|
THE BEYMA 15LEX1000ND HANDLES A HIGH POWER OF 2,000 WATTS PROGRAM W/ A 10.0MM XMAX! |
|
|
|
BEYMA 15LEX1000ND |
|
Item Price: $388.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
15" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
1,000
Watts |
| Program Power |
2,000
Watts |
|
Frequency
Response |
40Hz
- 1.5kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
3.5"
/ 88.9mm |
| Voice Coil Length | 25 mm |
| Air Gap Height | 12 mm |
| X Damage (peak to peak) | 65 mm |
| BL Factor | 21.9 N/A |
|
Mounting Information |
|
|
Overall Diameter |
15.47" / 393mm |
| Bolt Circle Diameter | 14.7" / 373mm |
| Baffle Cutout Diameter- | |
| - Rear Mount | 13.9" / 352mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.4" / 189mm |
|
Net
Weight |
14.8 lb. / 6.7 kg. |
|
Shipping
Weight |
17 lb. / 7.7 kg. |
|
Materials |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 41 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | 1.1 mH |
| Mechanical Q (Qms) | 3.9 |
| Electrical Factor (Qes) | .41 |
| Total Q (Qts) | .37 |
| Comp. Equivelant Vol. (Vas) | 3.99 ft3 / 113 Liters |
| Voice Coil Overhang (Xmax) | 10 mm |
| Moving Mass (Mms) | 147 Grams |
| Surface Area of Cone (Sd)m2 | 0.088m2 |
| Reference Efficiency | 1.8% |
| Displacement Volume (Vd) | 880 cm3 |

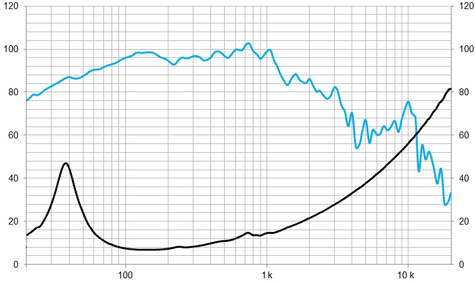

| Frequency Response & Free Air Impedance Curve | |
 |
|

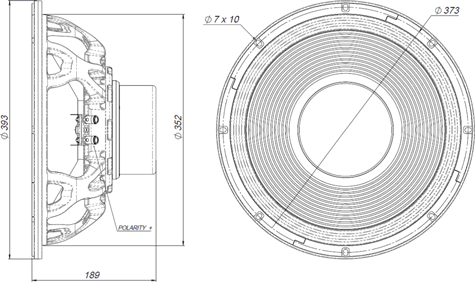

| Mounting Dimensions | |
 |
|
