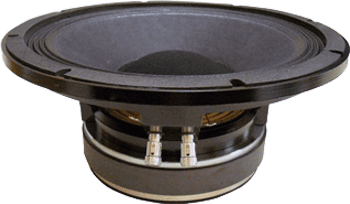

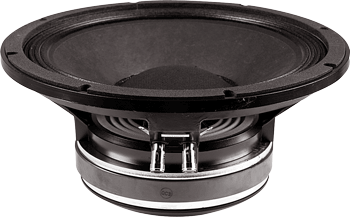

BEYMA 12KX - 12" COAXIAL SPEAKER
|
|
|
BEYMA 12KX - 12" COAXIAL SPEAKER |
|
POWERFUL 12" COAXIAL DELIVERS A VERY SMOOTH DETAILED SOUND! |
|
|
|
BEYMA 12KX |
|
Item Price: $439.95 |
|
|
COAXIAL MODEL |
12KX |
|
Specifications |
|
|
Low Frequency Woofer |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
300
Watts |
| Program Power |
600
Watts |
|
Frequency
Response |
35Hz
- 3.0kHz |
|
Sensitivity
(1W/1m) |
98dB |
|
Voice
Coil Diameter |
3"
/ 77mm |
| Recom. Enclosure Volume | 1.49-3.53 ft3 / 40-100 Liters |
| Voice Coil Length | 13 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 14.5 N/A |
| Magnetic Assembly Weight | 6.4 lb. / 14.11 kg. |
|
High Frequency Tweeter |
|
| Impedance | 8 ohms |
| Minimum Impedance | 6.5 ohms @ 1.0kHz |
|
AES
Power Rating |
100 Watts |
| Frequency Response | 800kHz to 17kHz |
|
Sensitivity
(1W/1m) |
105dB |
| Dispersion | 90° |
| Voice Coil Diameter | 2.8" / 72.2mm |
| Flux Density | 1.4 T |
| BL Factor | 7.5 N/A |
| X Damage | 20mm |
|
Mounting Information |
|
|
Overall Diameter |
12.6"
/ 320mm |
| Bolt Circle Diameter |
11.8"
/ 300mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.26" / 286mm |
| - Rear Mount | 11.02" / 280mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.25 ft3 / 7 Liters |
|
Overall
Depth |
6.3"
/ 160mm |
|
Net
Weight |
17.31 lb. / 7.85 kg. |
| Shipping Weight | 18.73 lb. / 8.5 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Magnet | Ferrite |
|
High Frequency Tweeter |
|
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 45 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 10.4 |
| Electrical Factor (Qes) | .38 |
| Total Q (Qts) | .37 |
| Comp. Equivalent Vol. (Vas) | 2.47 ft3 / 70 Liters |
| Voice Coil Overhang (Xmax) | 3.5 mm |
| Surface Area of Cone (Sd)m2 | 0.055m2 |
| Reference Efficiency | 2.9% |
| Displacement Volume (Vd) | 200 cm3 |
|

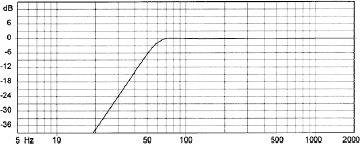

Predicted Low Frequency Response - Vb=60L, Fb=60Hz |
|
|
|
|
|
Frequency Response & Distortion Curves |
|
|
|
|
|

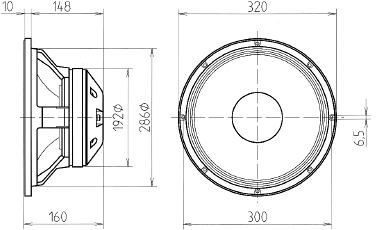

Mounting Dimensions |
|
|
|
|
