BEYMA 10NMFS- 10" SUBWOOFER SPEAKER
|
|
|
BEYMA 10NMFS- 10" SUBWOOFER SPEAKER |
|
THE BEYMA 10NMFS 10" SPEAKER HAS A VERY HIGH 14.5MM XMAX & HANDLES 700 WATTS POWER HANDLING! |
|
|
|
BEYMA 10NMFS |
|
Item Price: $411.75 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
350
Watts |
| Program Power |
700
Watts |
|
Frequency
Response |
30Hz
- 2kHz |
|
Sensitivity
(1W/1m) |
90dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Voice Coil Length | 32 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 50 mm |
|
Mounting Information |
|
|
Overall Diameter |
10.98" / 279mm |
|
Bolt
Circle Diameter |
10.26"
/ 260.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9" / 229mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
|
Overall
Depth |
6.8" / 172.8mm |
|
Net
Weight |
14.33 lb. / 6.5 kg. |
| Shipping Weight | 15.9 lb. / 7.2 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Carbon Fiber |
| Dustcap | Carbon Fiber |
| Spider | Copper |
| Voice Coil | Quattro Inside/Outside Aluminum |
| Spider | Double Bimax |
| Surround | NBR |
| Demodulation Ring | 3 Aluminum & Copper |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
|
Impedance
(Re) |
5.9 ohms |
| Coil Inductance (Le) | 1.49 mH |
| Mechanical Q (Qms) | 5.9 |
| Electrical Factor(Qes) | .45 |
| Total Q (Qts) | .42 |
| Comp. Equivalent Vol. (Vas) | 1.459 ft3 / 45 Liters |
| Voice Coil Overhang (Xmax) | 14.5mm |
| Moving Mass (Mms) | 89 Grams |
| Effective Surface Area (Sd) | .0370 m2 |
| Reference Efficiency | .42% |
| BL Factor | 16N/A |
| Displacement Volume (Vd) | 536 cm3 |
|

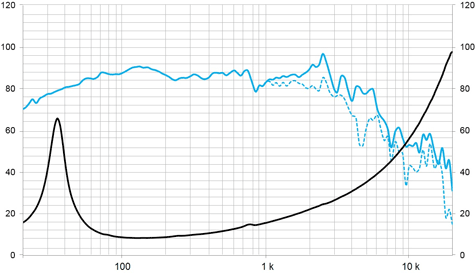

Frequency Response & Impedance Graph |
|
 |
|

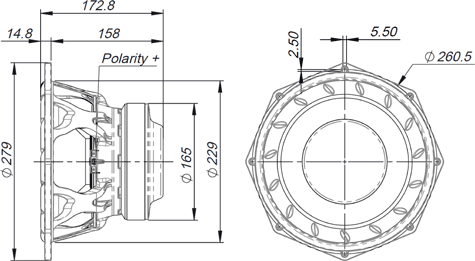

| Dimensional Drawing | |
 |
|
