BEYMA 10MC700ND - POWERFUL 10" LIGHTWEIGHT NEODYMIUM SPEAKER
|
|
|
BEYMA 10MC700ND - POWERFUL 10" LIGHTWEIGHT NEODYMIUM SPEAKER |
|
THE BEYMA 10LMC700ND IS A POWERFUL LIGHTWEIGHT NEODYMIUM 10" SPEAKER THAT HANDLES 700 WATTS AES! |
|
|
|
BEYMA 10MC700ND |
|
4 Ohms
Item Price: $334.50 |
|
|
8 Ohms
Item Price: $334.50 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4 & 8
ohms |
|
AES
Power Rating |
700
Watts |
| Program Power |
1,400
Watts |
|
Frequency
Response |
60Hz
- 4kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
3"
/ 76.2mm |
| Recom. Enclosure Volume | .49 ft3 / 14 Liters |
| Voice Coil Length | 18 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 48 mm |
|
Mounting Information |
|
|
Overall Diameter |
10.3" / 261mm |
|
Bolt
Circle Diameter |
9.6"
/ 243.5mm |
| Baffle Cutout Diameter | 9.0" / 228mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
|
Overall
Depth |
5" / 126mm |
|
Net
Weight |
7.9 lb. / 3.6 kg. |
| Shipping Weight | 9 lb. / 4.1 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 56 Hz |
|
Impedance
(Re) |
5.2 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 3.9 |
| Electrical Factor(Qes) | .22 |
| Total Q (Qts) | .21 |
| Comp. Equivalent Vol. (Vas) | .9 ft3 / 25.5 Liters |
| Voice Coil Overhang (Xmax) | 7.0mm |
| Effective Surface Area (Sd) | .0350 m2 |
| Diaphragm Mass (Mms) | 55 Grams |
| BL Factor (T-M) | 21.5 |
| Reference Efficiency | 2% |
| Displacement Volume | 245 cm3 |
|

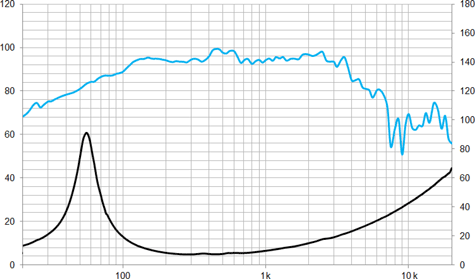

Frequency Response & Impedance Graph |
|
 |
|

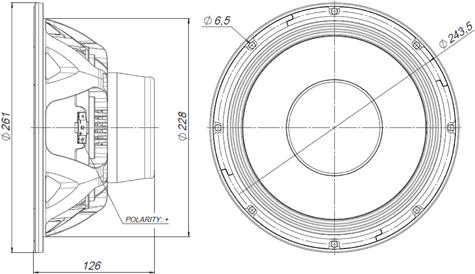

| Dimensional Drawing | |
 |
|
