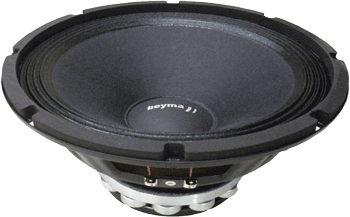

BEYMA 10M/ND-4 - 10" NEODYMIUM MIDRANGE SPEAKER
|
|
|
BEYMA 10M/ND-4 - 10" NEODYMIUM MIDRANGE SPEAKER |
|
BEYMA 10M/ND-4 IS A 10 INCH 4 OHM MIDRANGE SPEAKER THAT HAS VERY HIGH EFFICIENCY OF 101DB SPL! |
|
|
|
BEYMA 10M/ND-4 |
|
4 Ohms
Item Price: $379.95 |
|
|
SPEAKER
MODEL |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
4
ohms |
|
AES
Power Rating |
250
Watts |
| Program Power |
500
Watts |
|
Frequency
Response |
100Hz
- 8kHz |
|
Sensitivity
(1W/1m) |
101dB |
|
Voice
Coil Diameter |
2.5"
/ 62.4mm |
| Recom. Enclosure Volume | .7-2.6 ft3 / 20-70 Liters |
| Voice Coil Length | 10 mm |
| Air Gap Height | 10 mm |
|
Mounting Information |
|
|
Overall Diameter |
10.12" / 257mm |
|
Bolt
Circle Diameter |
9.61"
/ 244mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.33" / 237mm |
| - Rear Mount | 9.25" / 235mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
|
Overall
Depth |
4.74" / 120.4mm |
|
Net
Weight |
6.5 lb. / 2.95 kg. |
| Shipping Weight | 7.36 lb. / 3.34 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | High Stiff Paper |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 66 Hz |
|
Impedance
(Re) |
2.8 ohms |
| Coil Inductance (Le) | .5 mH |
| Mechanical Q (Qms) | 14.35 |
| Electrical Factor(Qes) | .36 |
| Total Q (Qts) | .35 |
| Comp. Equivalent Vol. (Vas) | 1.21 ft3 / 34.28 Liters |
| Voice Coil Overhang (Xmax) | 2.8mm |
| Effective Surface Area (Sd) | .0350 m2 |
| Moving Mass (Mms) | 33 Grams |
| Reference Efficiency | 2.69% |
| BL Factor | 10.4N/A |
| Displacement Volume (Vd) | 227 cm3 |
|

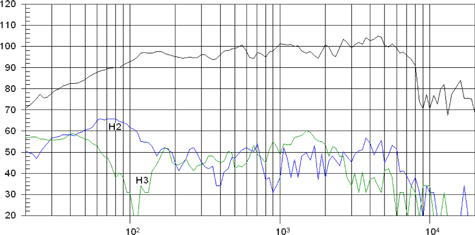

Frequency Response & Distortion Graph |
|
 |
|

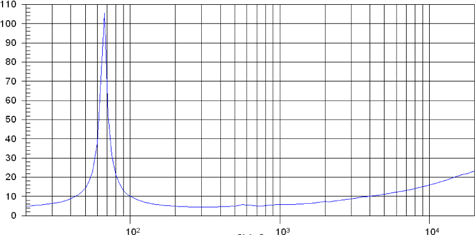

| Impedance Curve | |
 |
|
