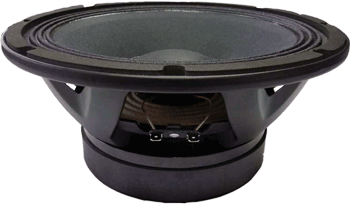

BEYMA 10MC500 - 10" MID-BASS SPEAKER
|
|
|
BEYMA 10MC500 - 10" MID-BASS SPEAKER |
|
THE BEYMA 10MC500 HAS CLEAR LOUD MID-BASS WITH STRONG POWERFUL BASS FROM 60HZ AND UP! |
|
|
|
BEYMA 10MC500 |
|
Item Price: $181.50 |
|
|
WOOFER
MODEL - |
|
|
Specifications |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
|
AES
Power Rating |
500 Watts |
| Program Power |
1,000
Watts |
|
Frequency
Response |
60Hz
- 5.0kHz |
|
Sensitivity
(1W/1m) |
97dB |
|
Voice
Coil Diameter |
2.5" /
63.5mm |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 9.5 mm |
| X Damage (peak to peak) | 40 mm |
| BL Factor | 18.3 N/A |
|
Mounting Information |
|
|
Overall Diameter |
10.28" / 261mm |
| Bolt Circle Diameter | 9.58" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.06" / 230mm |
| - Rear Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
|
Overall
Depth |
4.89" / 124.3mm |
|
Net
Weight |
12.5 lb. / 5.7 kg. |
| Shipping Weight | 13.42 lb. / 6.1 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 60 Hz |
| Impedance (Re) | 5.7 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 7.5 |
| Electrical Factor (Qes) | .29 |
| Total Q (Qts) | .28 |
| Comp. Equivalent Vol. (Vas) | 0.92 ft3 / 26 Liters |
| Voice Coil Overhang (Xmax) | 8.0 mm |
| Moving Mass (Mms) | .044 kg. |
| Surface Area of Cone (Sd)m2 | 0.035m2 |
| Reference Efficiency | 2% |
| Displacement Volume (Vd) | 280 cm3 |
|

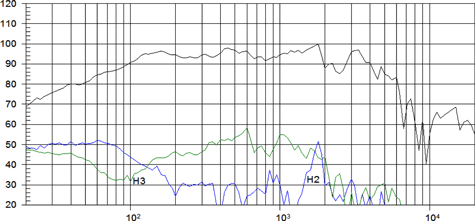

Frequency Response & Distortion Curves |
|
| Note: On axis frequency response measured with loudspeaker standing on infinite baffle in anechoic chamber, 1W @ 1m | |
|
|
|
|

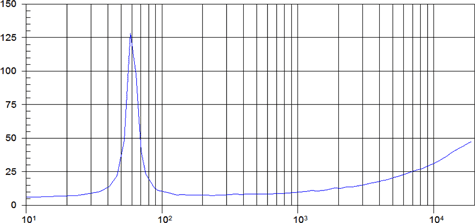

Impedance Curve |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
