ToneSpeaK TSB-15-500 - 15" BASS GUITAR SPEAKER
|
|
|
ToneSpeaK TSB-15-500 - 15" BASS GUITAR SPEAKER |
|
THE TONESPEAK TSB-15-500 15" BASS SPEAKER HAS CLEAN EFFICIENT LOUD MIDS AND TIGHT SMOOTH DEEP BASS! |
|
|
|
ToneSpeak TSB-15-500
Item Price: $319.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | TSB-15-500 |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
15" / 381mm |
|
Impedance |
8 ohms |
| RMS Power Rating | 500 Watts |
| Peak Power Rating | 1,000 Watts |
| Usable Frequency Response | 40Hz - 4kHz |
| Voice Coil Diameter | 3" / 76.2mm |
|
Sensitivity (1W/1m) |
99.9dB |
|
Magnet Weight |
11 oz. |
|
MOUNTING INFORMATION |
|
|
|
15.14" / 384.5mm |
| Bolt Circle Diameter |
14.57 |
| Baffle Cutout Diameter | 13.98" / 355mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.256" / 6.5mm |
| Magnet Diameter | 4.124" / 104.3mm |
| Overall Depth | 6.46" / 164mm |
|
MATERIALS |
|
| Basket | Pressed Steel |
| Voice Coil | Inside/Outside Copper |
| Coil Former Material | Fiberglass |
| Dust Cap | Felt |
| Cone | Paper |
| Surround | Cloth |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 37.3Hz |
| Impedance (Re) | 5.81 ohms |
| Coil Inductance (Le) | 0.69mH |
| Electromagnetic Q (Qes) | 0.34 |
| Mechanical Q (Qms) | 13.56 |
| Total Q (Qts) | .33 |
| Compliance Equiv. Vol. (Vas) | 150.66 Liters / 5.32 cu. ft. |
| BL Product (BL) | 20.1 T-M |
| Voice Coil Overhang (Xmax) | 8.1 mm |
| Diaphragm Mass (Mms) | 80.9 Grams |
| Reference Efficiency | 1.5% |
| Surface Area of Cone (Sd) | .0855m2 |
|

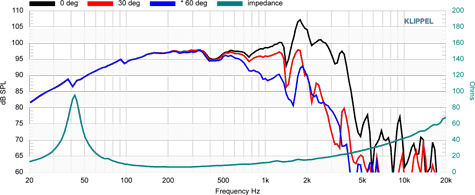

Frequency Response & Impedance Curve |
|
 |
|

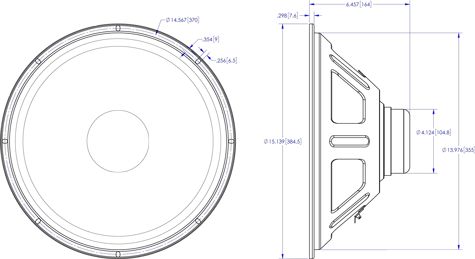

| Mounting Dimensions | |
|
|
|
