Genuine Eminence
-
12"
GUITAR SPEAKER
|
|
|
|
|
THE EMINENCE GOVERNOR 12 INCH GUITAR SPEAKER HAS A CLASSIC 'BITING' BRITISH TONE WITH VERY GOOD DEFINITION! |
|
|
Free UPS Ground Shipping in the U.S. |
The Governor-8 - 8 ohm version
Item Price: $144.99 |
|
The Governor-16 - 16 ohm version
Item Price: $144.99 |
|
| SPEAKER MODEL | THE GOVERNOR |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8
or 16 ohms
|
| RMS Power Rating | 75 Watts |
| Peak Power Rating | 150 Watts |

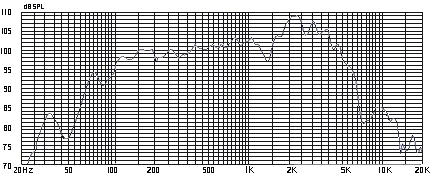

| Usable Frequency Response | 70Hz - 5.5kHz |
|
Voice
Coil Diameter |
1.75"
/ 44.5mm |
|
Sensitivity
(1W/1m) |
102dB |
|
Magnet
Weight |
56
oz. |
| Shipping Weight | 13lbs. / 5.9 kg. |
|
MOUNTING INFORMATION |
|
|
|
12.02" / 305.2mm |
| Bolt Circle Diameter |
11.63 |
| Baffle Cutout Diameter | 10.97" / 278.6mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.2" / 132.1mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Nomex |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 101Hz |
| Impedance (Re) | 6.81 ohms |
| Coil Inductance (Le) | 0.41mH |
| Electromagnetic Q (Qes) | 0.59 |
| Mechanical Q (Qms) | 11.41 |
| Total Q (Qts) | .56 |
| Compliance Equiv. Vol. (Vas) | 30.1Liters / 1.1 cu. ft. |
| BL Product (BL) | 15.3 T-M |
| Voice Coil Overhang (Xmax) | 1.2mm |
| Surface Area of Cone (Sd) | .05195m2 |
|
|
|
