Genuine Eminence
12" GUITAR SPEAKER
|
|
|
|
|
12" GUITAR SPEAKER |
|
THE EMINENCE SWAMP THANG DELIVERS A FAT BASS WITH PRONOUNCED MIDS & SMOOTH HIGHS THAT IS CLEAN SOUNDING! |
|
|
Free UPS Ground Shipping in the U.S. |
Swamp Thang-8 - 8 ohms
Item Price: $139.99 |
|
Swamp Thang-16 - 16 ohms
Item Price: $139.99 |
|
| SPEAKER MODEL | SWAMP THANG |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 305mm |
|
Impedance |
8
or 16 ohms
|
| RMS Power Rating | 150 Watts |
| Peak Power Rating | 300 Watts |

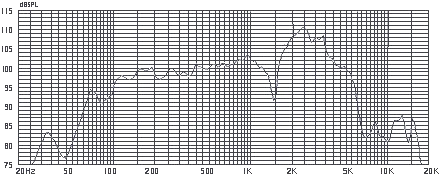

| Usable Frequency Response | 70Hz - 5kHz |
|
Voice
Coil Diameter |
2"
/ 50.8mm |
|
Sensitivity
(1W/1m) |
102dB |
|
Magnet
Weight |
59
oz. |
| Shipping Weight | 13.0lbs. /5.9kg. |
|
MOUNTING INFORMATION |
|
|
|
12.01" / 305.3mm |
| Bolt Circle Diameter |
11.63 |
| Baffle Cutout Diameter | 10.95" / 278.1mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 5.2" / 132.1mm |
|
MATERIALS |
|
| Basket | Stamped Steel |
| Voice Coil | Copper |
| Coil Former Material | Kapton |
| Dust Cap | Zurette |
| Cone | Paper |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 97Hz |
| Impedance (Re) | 6.92 ohms |
| Coil Inductance (Le) | 0.42mH |
| Electromagnetic Q (Qes) | 0.55 |
| Mechanical Q (Qms) | 14.43 |
| Total Q (Qts) | 0.53 |
| Compliance Equiv. Vol. (Vas) | 41.3 Liters / 1.5 cu. ft. |
| Voice Coil Overhang (Xmax) | .79mm |
| BL Product (BL) | 14.2 T-M |
| Surface Area of Cone (Sd) | .05324m2 |
|
|
|
